Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: AssertedCashflow
Namespace: http://www.fpml.org/2005/FpML-4-2
Containing Schema: fpml-cashflow-matching-4-2.xsd
Abstract
Documentation:
A type that defines a cashflow (or set of cashflows for cross-currency swap) asserted by one of the parties.

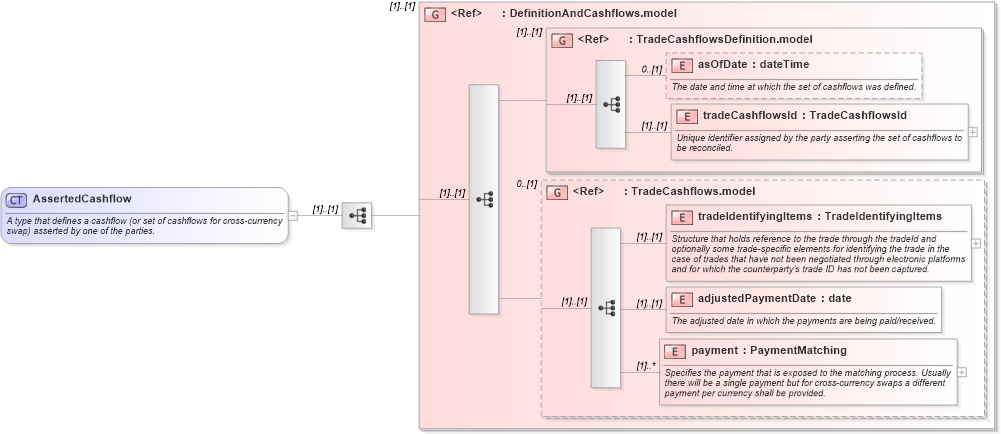

Collapse XSD Schema Diagram:
Drilldown into payment in schema fpml-cashflow-matching-4-2_xsd Drilldown into adjustedPaymentDate in schema fpml-cashflow-matching-4-2_xsd Drilldown into tradeIdentifyingItems in schema fpml-cashflow-matching-4-2_xsd Drilldown into TradeCashflows.model in schema fpml-cashflow-matching-4-2_xsd Drilldown into tradeCashflowsId in schema fpml-cashflow-matching-4-2_xsd Drilldown into asOfDate in schema fpml-cashflow-matching-4-2_xsd Drilldown into TradeCashflowsDefinition.model in schema fpml-cashflow-matching-4-2_xsd Drilldown into DefinitionAndCashflows.model in schema fpml-cashflow-matching-4-2_xsdXSD Diagram of AssertedCashflow in schema fpml-cashflow-matching-4-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="AssertedCashflow">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that defines a cashflow (or set of cashflows for cross-currency swap) asserted by one of the parties.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DefinitionAndCashflows.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
asOfDate fpml:asOfDate 0 (1)
tradeCashflowsId fpml:tradeCashflowsId (1) (1)
tradeIdentifyingItems fpml:tradeIdentifyingItems (1) (1)
adjustedPaymentDate fpml:adjustedPaymentDate (1) (1)
payment fpml:payment (1) unbounded
<xs:group> fpml:DefinitionAndCashflows.model (1) (1)
<xs:group> fpml:TradeCashflowsDefinition.model (1) (1)
<xs:group> fpml:TradeCashflows.model 0 (1)
Collapse Derivation Tree:
Collapse References:
fpml:assertedCashflow
