Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: MessageHeader.model
Namespace: http://www.fpml.org/2005/FpML-4-2
Containing Schema: fpml-msg-4-2.xsd

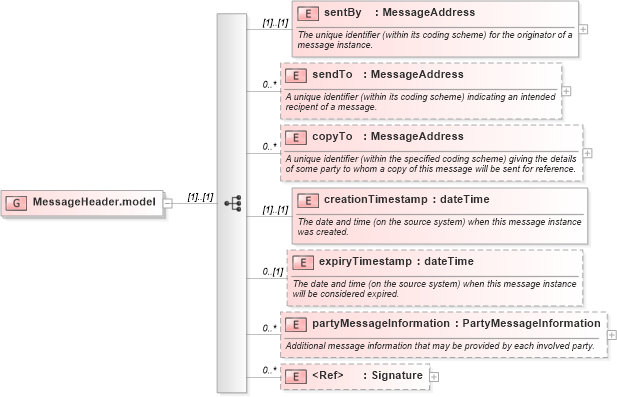

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd1 Drilldown into partyMessageInformation in schema fpml-msg-4-2_xsd Drilldown into expiryTimestamp in schema fpml-msg-4-2_xsd Drilldown into creationTimestamp in schema fpml-msg-4-2_xsd Drilldown into copyTo in schema fpml-msg-4-2_xsd Drilldown into sendTo in schema fpml-msg-4-2_xsd Drilldown into sentBy in schema fpml-msg-4-2_xsdXSD Diagram of MessageHeader.model in schema fpml-msg-4-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="MessageHeader.model">
    <xsd:sequence>
        <xsd:element name="sentBy" type="MessageAddress">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The unique identifier (within its coding scheme) for the originator of a message instance.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sendTo" type="MessageAddress" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A unique identifier (within its coding scheme) indicating an intended recipent of a message.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="copyTo" type="MessageAddress" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A unique identifier (within the specified coding scheme) giving the details of some party to whom a copy of this message will be sent for reference.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="creationTimestamp" type="xsd:dateTime">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date and time (on the source system) when this message instance was created.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="expiryTimestamp" type="xsd:dateTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date and time (on the source system) when this message instance will be considered expired.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="partyMessageInformation" type="PartyMessageInformation" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Additional message information that may be provided by each involved party.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="dsig:Signature" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sentBy fpml:sentBy (1) (1)
sendTo fpml:sendTo 0 unbounded
copyTo fpml:copyTo 0 unbounded
creationTimestamp fpml:creationTimestamp (1) (1)
expiryTimestamp fpml:expiryTimestamp 0 (1)
partyMessageInformation fpml:partyMessageInformation 0 unbounded
Signature ds:Signature 0 unbounded
