Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: BidMidAsk.model
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-mktenv-4-4.xsd
Documentation:
The bid, mid, or ask values relevant for a quote

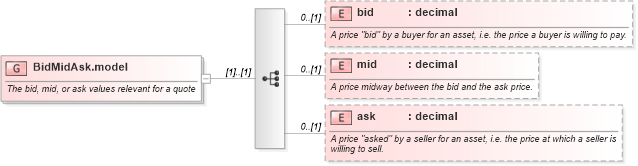

Collapse XSD Schema Diagram:
Drilldown into ask in schema fpml-mktenv-4-4_xsd Drilldown into mid in schema fpml-mktenv-4-4_xsd Drilldown into bid in schema fpml-mktenv-4-4_xsdXSD Diagram of BidMidAsk.model in schema fpml-mktenv-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="BidMidAsk.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The bid, mid, or ask values relevant for a quote</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="bid" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A price "bid" by a buyer for an asset, i.e. the price a buyer is willing to pay.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="mid" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A price midway between the bid and the ask price.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ask" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A price "asked" by a seller for an asset, i.e. the price at which a seller is willing to sell.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bid fpml:bid 0 (1)
mid fpml:mid 0 (1)
ask fpml:ask 0 (1)
