Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: bond
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Bond
Containing Schema: fpml-asset-4-4.xsd
Abstract
Documentation:
Defines the underlying asset when it is a bond.

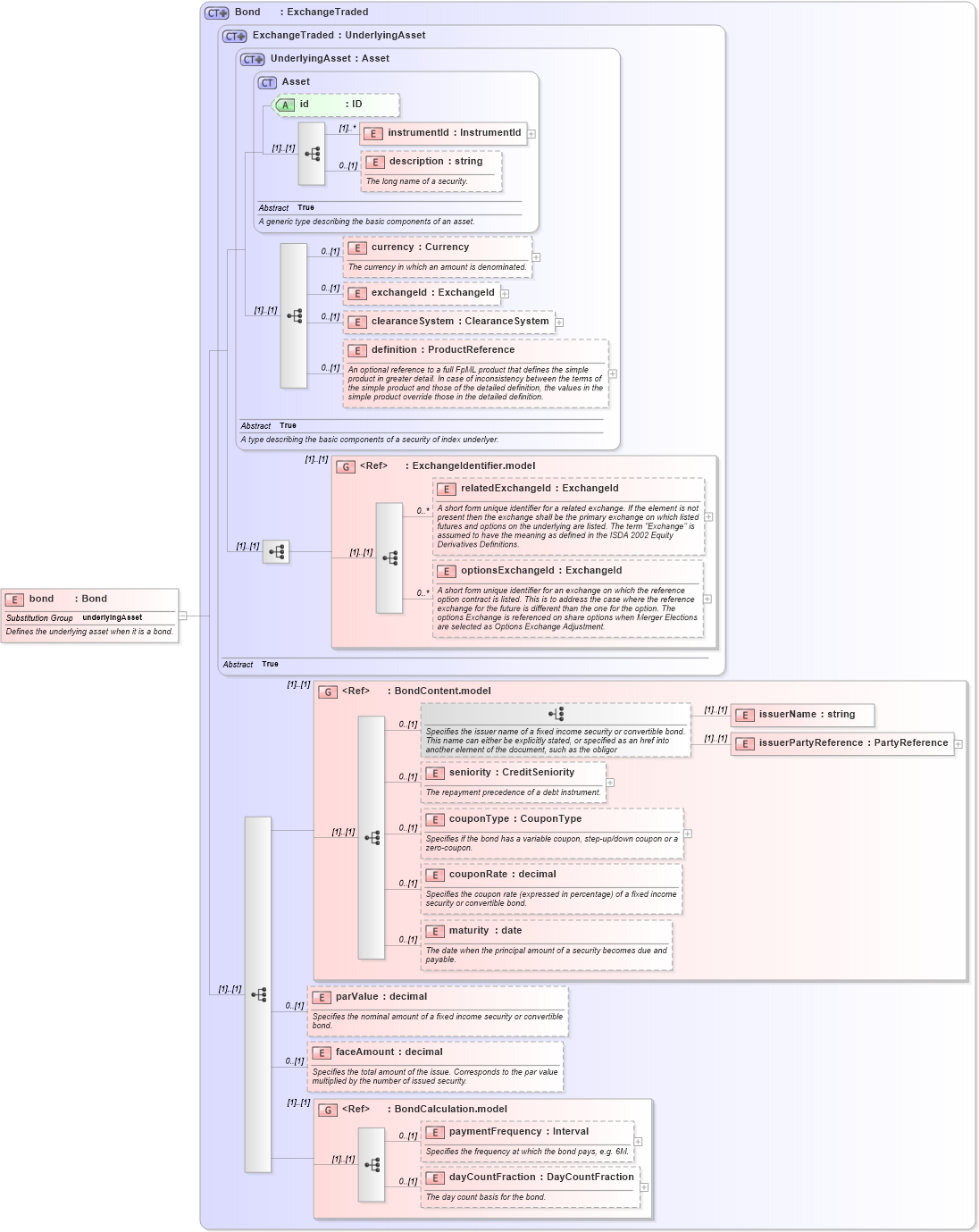

Collapse XSD Schema Diagram:
Drilldown into dayCountFraction in schema fpml-asset-4-4_xsd Drilldown into paymentFrequency in schema fpml-asset-4-4_xsd Drilldown into BondCalculation.model in schema fpml-asset-4-4_xsd Drilldown into faceAmount in schema fpml-asset-4-4_xsd Drilldown into parValue in schema fpml-asset-4-4_xsd Drilldown into maturity in schema fpml-asset-4-4_xsd Drilldown into couponRate in schema fpml-asset-4-4_xsd Drilldown into couponType in schema fpml-asset-4-4_xsd Drilldown into seniority in schema fpml-asset-4-4_xsd Drilldown into issuerPartyReference in schema fpml-asset-4-4_xsd Drilldown into issuerName in schema fpml-asset-4-4_xsd Drilldown into BondContent.model in schema fpml-asset-4-4_xsd Drilldown into optionsExchangeId in schema fpml-asset-4-4_xsd Drilldown into relatedExchangeId in schema fpml-asset-4-4_xsd Drilldown into ExchangeIdentifier.model in schema fpml-asset-4-4_xsd Drilldown into definition in schema fpml-asset-4-4_xsd Drilldown into clearanceSystem in schema fpml-asset-4-4_xsd Drilldown into exchangeId in schema fpml-asset-4-4_xsd Drilldown into currency in schema fpml-asset-4-4_xsd Drilldown into description in schema fpml-asset-4-4_xsd Drilldown into instrumentId in schema fpml-asset-4-4_xsd Drilldown into id in schema fpml-asset-4-4_xsd Drilldown into Asset in schema fpml-asset-4-4_xsd Drilldown into UnderlyingAsset in schema fpml-asset-4-4_xsd Drilldown into ExchangeTraded in schema fpml-asset-4-4_xsd Drilldown into Bond in schema fpml-asset-4-4_xsdXSD Diagram of bond in schema fpml-asset-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="bond" type="Bond" substitutionGroup="underlyingAsset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the underlying asset when it is a bond.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId fpml:instrumentId (1) unbounded
description fpml:description 0 (1)
currency fpml:currency 0 (1)
exchangeId fpml:exchangeId 0 (1)
clearanceSystem fpml:clearanceSystem 0 (1)
definition fpml:definition 0 (1)
relatedExchangeId fpml:relatedExchangeId 0 unbounded
optionsExchangeId fpml:optionsExchangeId 0 unbounded
issuerName fpml:issuerName (1) (1)
issuerPartyReference fpml:issuerPartyReference (1) (1)
seniority fpml:seniority 0 (1)
couponType fpml:couponType 0 (1)
couponRate fpml:couponRate 0 (1)
maturity fpml:maturity 0 (1)
parValue fpml:parValue 0 (1)
faceAmount fpml:faceAmount 0 (1)
paymentFrequency fpml:paymentFrequency 0 (1)
dayCountFraction fpml:dayCountFraction 0 (1)
<xs:group> fpml:ExchangeIdentifier.model (1) (1)
<xs:group> fpml:BondContent.model (1) (1)
<xs:group> fpml:BondCalculation.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:underlyingAsset
