Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CashSettlementPaymentDate
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-ird-4-4.xsd
Abstract
Documentation:
A type defining the cash settlement payment date(s) as either a set of explicit dates, together with applicable adjustments, or as a date relative to some other (anchor) date, or as any date in a range of contiguous business days.

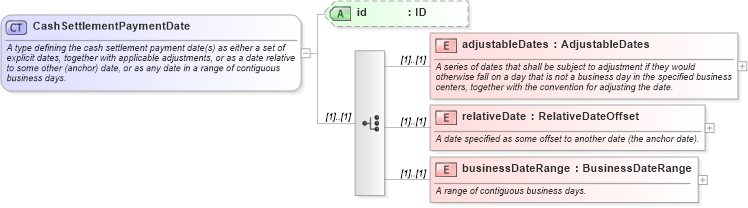

Collapse XSD Schema Diagram:
Drilldown into businessDateRange in schema fpml-ird-4-4_xsd Drilldown into relativeDate in schema fpml-ird-4-4_xsd Drilldown into adjustableDates in schema fpml-ird-4-4_xsd Drilldown into id in schema fpml-ird-4-4_xsdXSD Diagram of CashSettlementPaymentDate in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CashSettlementPaymentDate">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the cash settlement payment date(s) as either a set of explicit dates, together with applicable adjustments, or as a date relative to some other (anchor) date, or as any date in a range of contiguous business days.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:element name="adjustableDates" type="AdjustableDates">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="relativeDate" type="RelativeDateOffset">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A date specified as some offset to another date (the anchor date).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="businessDateRange" type="BusinessDateRange">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A range of contiguous business days.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
adjustableDates fpml:adjustableDates (1) (1)
relativeDate fpml:relativeDate (1) (1)
businessDateRange fpml:businessDateRange (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:cashSettlementPaymentDate
