Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: cashSettlementTerms
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:FxCashSettlement
Containing Schema: fpml-fx-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
This optional element is only used if an option has been specified at execution time to be settled into a single cash payment. This would be used for a non-deliverable option.

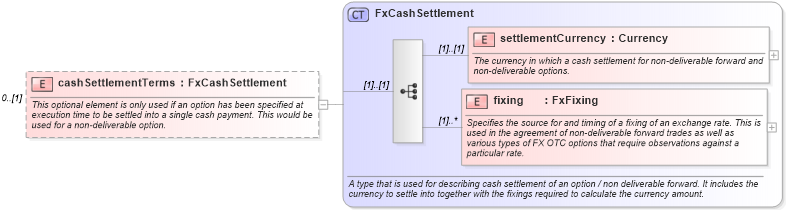

Collapse XSD Schema Diagram:
Drilldown into fixing in schema fpml-shared-4-4_xsd Drilldown into settlementCurrency in schema fpml-shared-4-4_xsd Drilldown into FxCashSettlement in schema fpml-shared-4-4_xsdXSD Diagram of cashSettlementTerms in schema fpml-fx-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="cashSettlementTerms" type="FxCashSettlement" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This optional element is only used if an option has been specified at execution time to be settled into a single cash payment. This would be used for a non-deliverable option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementCurrency fpml:settlementCurrency (1) (1)
fixing fpml:fixing (1) unbounded
Collapse Derivation Tree:
