Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commission
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Commission
Containing Schema: fpml-asset-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
This optional component specifies the commission to be charged for executing the hedge transactions.

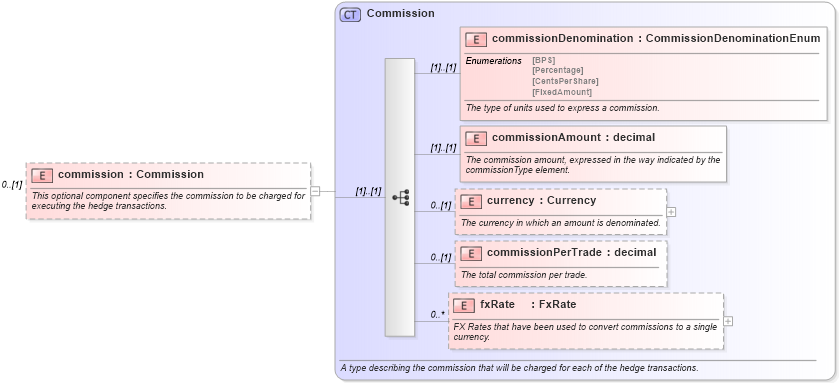

Collapse XSD Schema Diagram:
Drilldown into fxRate in schema fpml-asset-4-4_xsd Drilldown into commissionPerTrade in schema fpml-asset-4-4_xsd Drilldown into currency in schema fpml-asset-4-4_xsd Drilldown into commissionAmount in schema fpml-asset-4-4_xsd Drilldown into commissionDenomination in schema fpml-asset-4-4_xsd Drilldown into Commission in schema fpml-asset-4-4_xsdXSD Diagram of commission in schema fpml-asset-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commission" type="Commission" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This optional component specifies the commission to be charged for executing the hedge transactions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commissionDenomination fpml:commissionDenomination (1) (1)
commissionAmount fpml:commissionAmount (1) (1)
currency fpml:currency 0 (1)
commissionPerTrade fpml:commissionPerTrade 0 (1)
fxRate fpml:fxRate 0 unbounded
Collapse Derivation Tree:
