Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: compounding
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Compounding
Containing Schema: fpml-eq-shared-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Defines compounding rates on the Interest Leg.

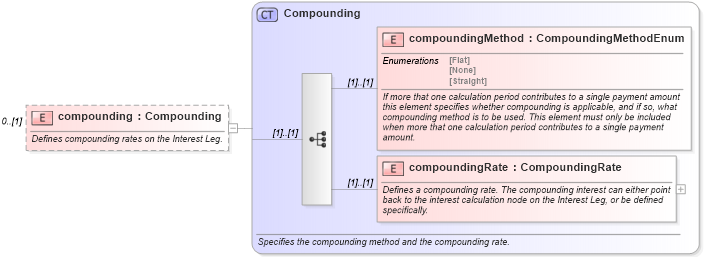

Collapse XSD Schema Diagram:
Drilldown into compoundingRate in schema fpml-eq-shared-4-4_xsd Drilldown into compoundingMethod in schema fpml-eq-shared-4-4_xsd Drilldown into Compounding in schema fpml-eq-shared-4-4_xsdXSD Diagram of compounding in schema fpml-eq-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="compounding" type="Compounding" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines compounding rates on the Interest Leg.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
compoundingMethod fpml:compoundingMethod (1) (1)
compoundingRate fpml:compoundingRate (1) (1)
Collapse Derivation Tree:
