Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: creditCurve
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:CreditCurve
Containing Schema: fpml-mktenv-4-4.xsd
Abstract

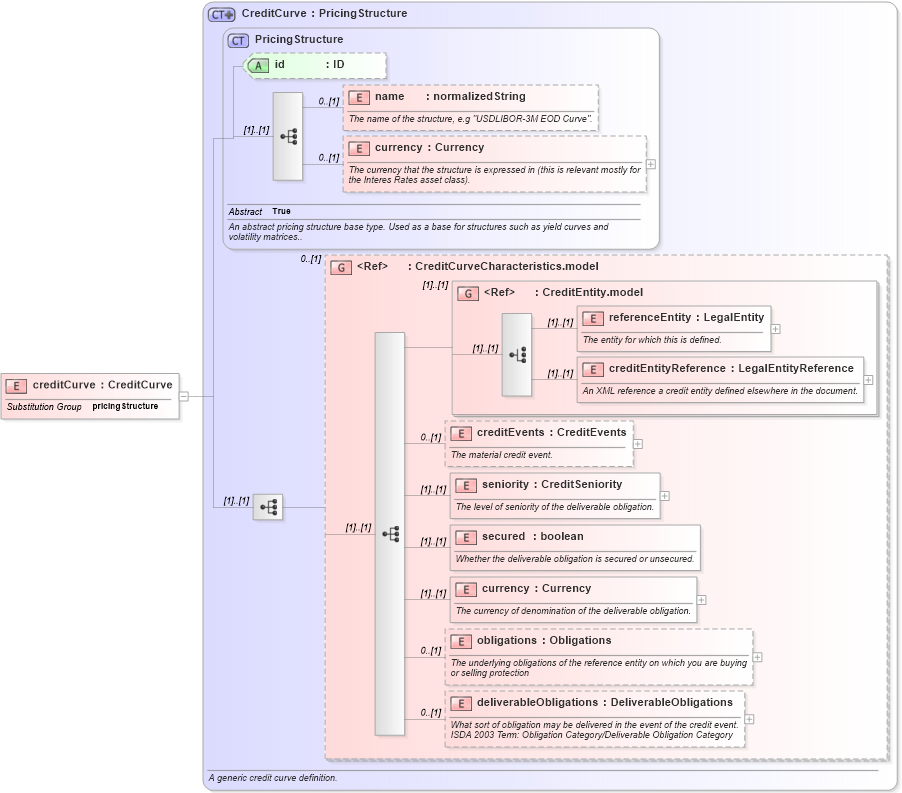

Collapse XSD Schema Diagram:
Drilldown into deliverableObligations in schema fpml-mktenv-4-4_xsd Drilldown into obligations in schema fpml-mktenv-4-4_xsd Drilldown into currency in schema fpml-mktenv-4-4_xsd Drilldown into secured in schema fpml-mktenv-4-4_xsd Drilldown into seniority in schema fpml-mktenv-4-4_xsd Drilldown into creditEvents in schema fpml-mktenv-4-4_xsd Drilldown into creditEntityReference in schema fpml-asset-4-4_xsd Drilldown into referenceEntity in schema fpml-asset-4-4_xsd Drilldown into CreditEntity.model in schema fpml-asset-4-4_xsd Drilldown into CreditCurveCharacteristics.model in schema fpml-mktenv-4-4_xsd Drilldown into currency in schema fpml-shared-4-4_xsd Drilldown into name in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into PricingStructure in schema fpml-shared-4-4_xsd Drilldown into CreditCurve in schema fpml-mktenv-4-4_xsdXSD Diagram of creditCurve in schema fpml-mktenv-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="creditCurve" type="CreditCurve" substitutionGroup="pricingStructure" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name fpml:name 0 (1)
currency fpml:currency 0 (1)
referenceEntity fpml:referenceEntity (1) (1)
creditEntityReference fpml:creditEntityReference (1) (1)
creditEvents fpml:creditEvents 0 (1)
seniority fpml:seniority (1) (1)
secured fpml:secured (1) (1)
currency fpml:currency (1) (1)
obligations fpml:obligations 0 (1)
deliverableObligations fpml:deliverableObligations 0 (1)
<xs:group> fpml:CreditCurveCharacteristics.model 0 (1)
<xs:group> fpml:CreditEntity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:pricingStructure
