Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CreditOptionStrike
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-cd-4-4.xsd
Abstract
Documentation:
A complex type to specify the strike of a credit swaption or a credit default swap option.

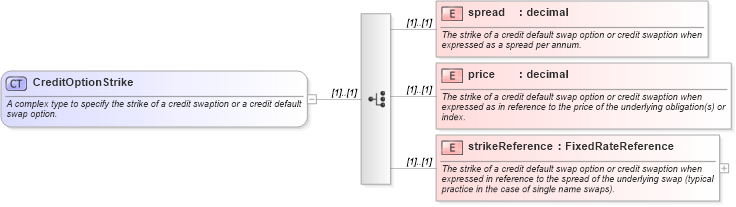

Collapse XSD Schema Diagram:
Drilldown into strikeReference in schema fpml-cd-4-4_xsd Drilldown into price in schema fpml-cd-4-4_xsd Drilldown into spread in schema fpml-cd-4-4_xsdXSD Diagram of CreditOptionStrike in schema fpml-cd-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CreditOptionStrike">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A complex type to specify the strike of a credit swaption or a credit default swap option.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:element name="spread" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The strike of a credit default swap option or credit swaption when expressed as a spread per annum.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="price" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The strike of a credit default swap option or credit swaption when expressed as in reference to the price of the underlying obligation(s) or index.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="strikeReference" type="FixedRateReference">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The strike of a credit default swap option or credit swaption when expressed in reference to the spread of the underlying swap (typical practice in the case of single name swaps).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
spread fpml:spread (1) (1)
price fpml:price (1) (1)
strikeReference fpml:strikeReference (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:strike
