Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: definePosition
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:DefinePosition
Containing Schema: fpml-reconciliation-4-4.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Used to specify a new position.

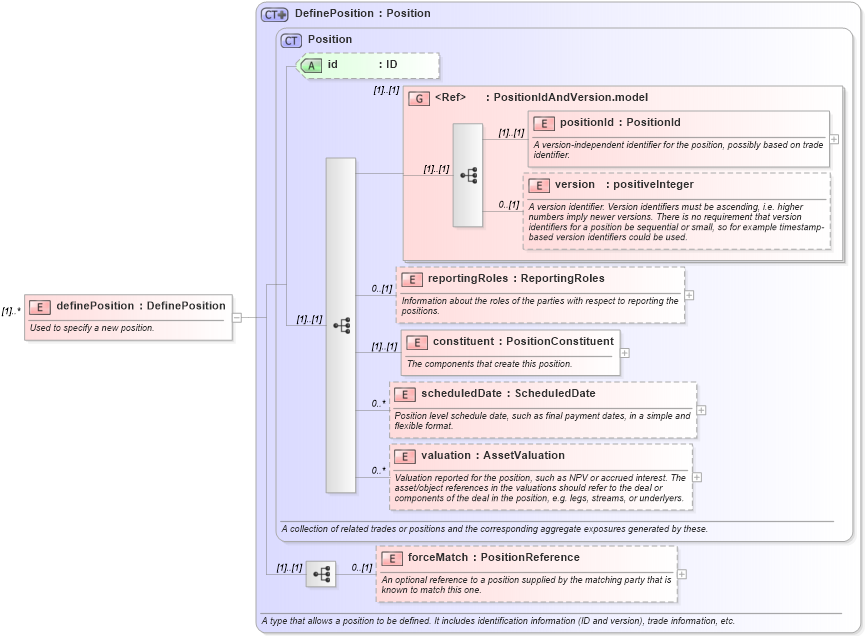

Collapse XSD Schema Diagram:
Drilldown into forceMatch in schema fpml-reconciliation-4-4_xsd Drilldown into valuation in schema fpml-valuation-4-4_xsd Drilldown into scheduledDate in schema fpml-valuation-4-4_xsd Drilldown into constituent in schema fpml-valuation-4-4_xsd Drilldown into reportingRoles in schema fpml-valuation-4-4_xsd Drilldown into version in schema fpml-riskdef-4-4_xsd Drilldown into positionId in schema fpml-riskdef-4-4_xsd Drilldown into PositionIdAndVersion.model in schema fpml-riskdef-4-4_xsd Drilldown into id in schema fpml-valuation-4-4_xsd Drilldown into Position in schema fpml-valuation-4-4_xsd Drilldown into DefinePosition in schema fpml-reconciliation-4-4_xsdXSD Diagram of definePosition in schema fpml-reconciliation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="definePosition" type="DefinePosition" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Used to specify a new position.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
positionId fpml:positionId (1) (1)
version fpml:version 0 (1)
reportingRoles fpml:reportingRoles 0 (1)
constituent fpml:constituent (1) (1)
scheduledDate fpml:scheduledDate 0 unbounded
valuation fpml:valuation 0 unbounded
forceMatch fpml:forceMatch 0 (1)
<xs:group> fpml:PositionIdAndVersion.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
