Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: DerivativeCalculationParameters.model
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-riskdef-4-4.xsd
Documentation:
Parameters used in the computation of a derivative.

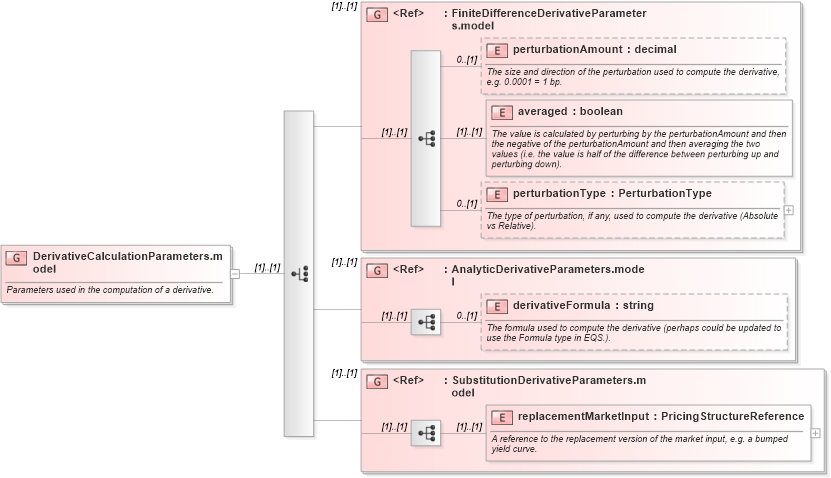

Collapse XSD Schema Diagram:
Drilldown into replacementMarketInput in schema fpml-riskdef-4-4_xsd Drilldown into SubstitutionDerivativeParameters.model in schema fpml-riskdef-4-4_xsd Drilldown into derivativeFormula in schema fpml-riskdef-4-4_xsd Drilldown into AnalyticDerivativeParameters.model in schema fpml-riskdef-4-4_xsd Drilldown into perturbationType in schema fpml-riskdef-4-4_xsd Drilldown into averaged in schema fpml-riskdef-4-4_xsd Drilldown into perturbationAmount in schema fpml-riskdef-4-4_xsd Drilldown into FiniteDifferenceDerivativeParameters.model in schema fpml-riskdef-4-4_xsdXSD Diagram of DerivativeCalculationParameters.model in schema fpml-riskdef-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="DerivativeCalculationParameters.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Parameters used in the computation of a derivative.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:group ref="FiniteDifferenceDerivativeParameters.model" />
        <xsd:group ref="AnalyticDerivativeParameters.model" />
        <xsd:group ref="SubstitutionDerivativeParameters.model" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
perturbationAmount fpml:perturbationAmount 0 (1)
averaged fpml:averaged (1) (1)
perturbationType fpml:perturbationType 0 (1)
derivativeFormula fpml:derivativeFormula 0 (1)
replacementMarketInput fpml:replacementMarketInput (1) (1)
<xs:group> fpml:FiniteDifferenceDerivativeParameters.model (1) (1)
<xs:group> fpml:AnalyticDerivativeParameters.model (1) (1)
<xs:group> fpml:SubstitutionDerivativeParameters.model (1) (1)
