Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: equitySwapTransactionSupplement
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:EquitySwapTransactionSupplement
Containing Schema: fpml-return-swaps-4-4.xsd
Abstract
Documentation:
Specifies the structure of the equity swap transaction supplement

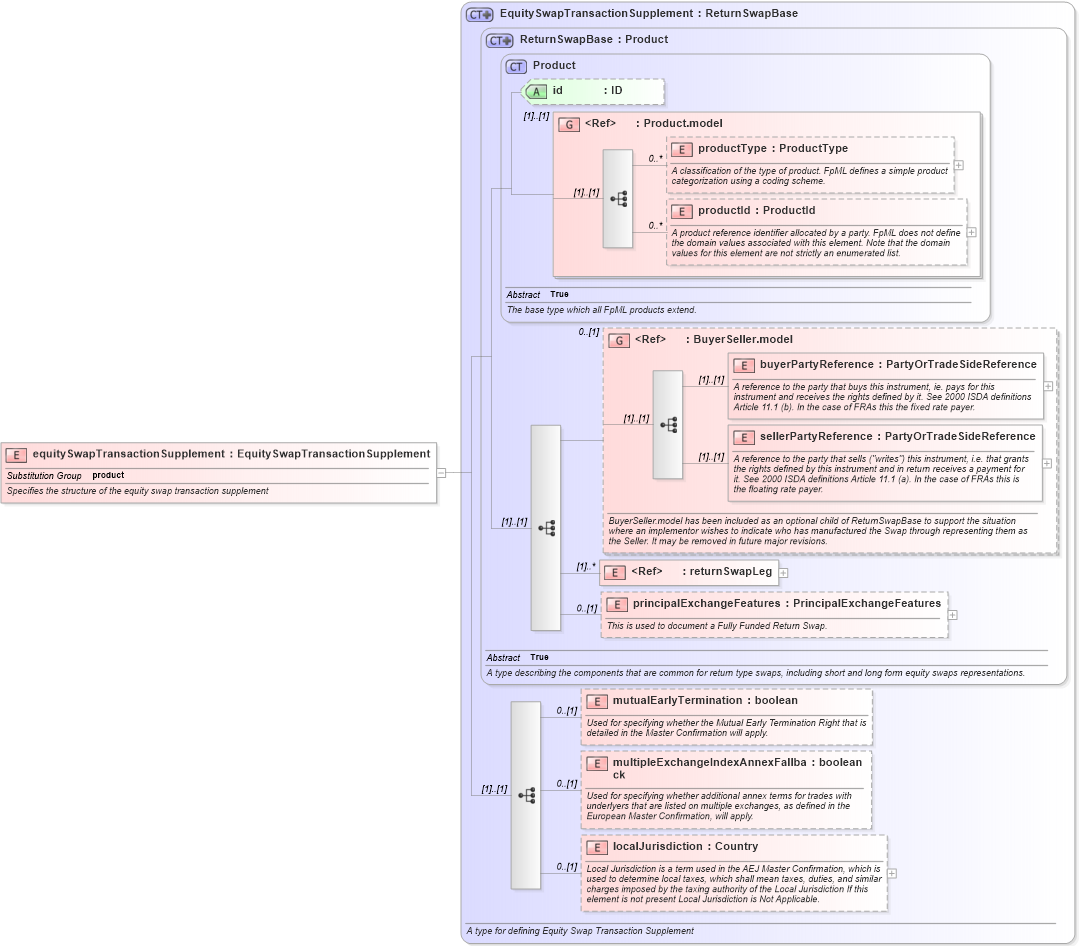

Collapse XSD Schema Diagram:
Drilldown into localJurisdiction in schema fpml-return-swaps-4-4_xsd Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-return-swaps-4-4_xsd Drilldown into mutualEarlyTermination in schema fpml-return-swaps-4-4_xsd Drilldown into principalExchangeFeatures in schema fpml-eq-shared-4-4_xsd Drilldown into returnSwapLeg in schema fpml-eq-shared-4-4_xsd Drilldown into sellerPartyReference in schema fpml-shared-4-4_xsd Drilldown into buyerPartyReference in schema fpml-shared-4-4_xsd Drilldown into BuyerSeller.model in schema fpml-shared-4-4_xsd Drilldown into productId in schema fpml-shared-4-4_xsd Drilldown into productType in schema fpml-shared-4-4_xsd Drilldown into Product.model in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Product in schema fpml-shared-4-4_xsd Drilldown into ReturnSwapBase in schema fpml-eq-shared-4-4_xsd Drilldown into EquitySwapTransactionSupplement in schema fpml-return-swaps-4-4_xsdXSD Diagram of equitySwapTransactionSupplement in schema fpml-return-swaps-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="equitySwapTransactionSupplement" type="EquitySwapTransactionSupplement" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the structure of the equity swap transaction supplement</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType fpml:productType 0 unbounded
productId fpml:productId 0 unbounded
buyerPartyReference fpml:buyerPartyReference (1) (1)
sellerPartyReference fpml:sellerPartyReference (1) (1)
returnSwapLeg fpml:returnSwapLeg (1) unbounded
principalExchangeFeatures fpml:principalExchangeFeatures 0 (1)
mutualEarlyTermination fpml:mutualEarlyTermination 0 (1)
multipleExchangeIndexAnnexFallback fpml:multipleExchangeIndexAnnexFallback 0 (1)
localJurisdiction fpml:localJurisdiction 0 (1)
<xs:group> fpml:BuyerSeller.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:product
