Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exerciseFee
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:ExerciseFee
Containing Schema: fpml-shared-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
A fee to be paid on exercise. This could be represented as an amount or a rate and notional reference on which to apply the rate.

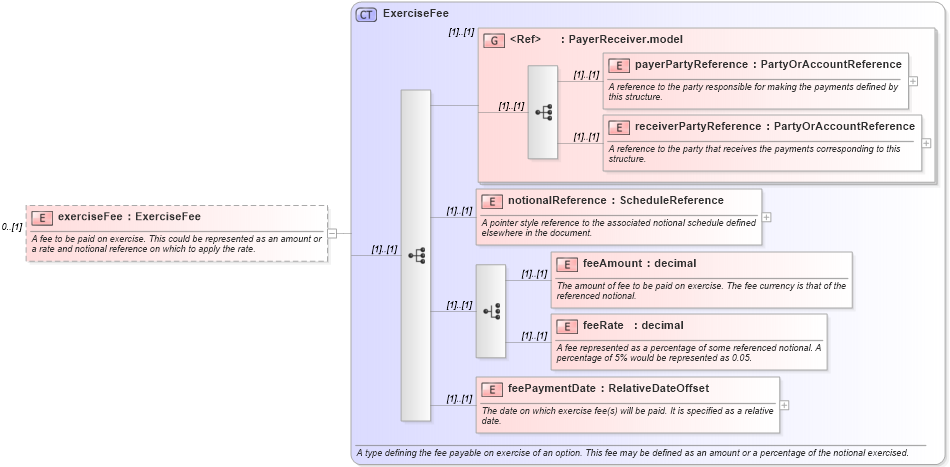

Collapse XSD Schema Diagram:
Drilldown into feePaymentDate in schema fpml-shared-4-4_xsd Drilldown into feeRate in schema fpml-shared-4-4_xsd Drilldown into feeAmount in schema fpml-shared-4-4_xsd Drilldown into notionalReference in schema fpml-shared-4-4_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-4_xsd Drilldown into payerPartyReference in schema fpml-shared-4-4_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-4_xsd Drilldown into ExerciseFee in schema fpml-shared-4-4_xsdXSD Diagram of exerciseFee in schema fpml-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exerciseFee" type="ExerciseFee" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A fee to be paid on exercise. This could be represented as an amount or a rate and notional reference on which to apply the rate.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference fpml:payerPartyReference (1) (1)
receiverPartyReference fpml:receiverPartyReference (1) (1)
notionalReference fpml:notionalReference (1) (1)
feeAmount fpml:feeAmount (1) (1)
feeRate fpml:feeRate (1) (1)
feePaymentDate fpml:feePaymentDate (1) (1)
<xs:group> fpml:PayerReceiver.model (1) (1)
Collapse Derivation Tree:
