Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: feeAmountSchedule
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:AmountSchedule
Containing Schema: fpml-shared-4-4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The exercise fee amount schedule. The fees are expressed as currency amounts. The currency of the fee is assumed to be that of the notional schedule referenced.

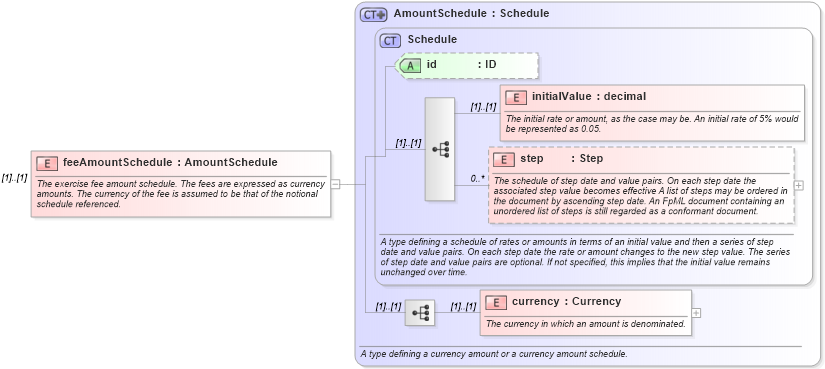

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-4-4_xsd Drilldown into step in schema fpml-shared-4-4_xsd Drilldown into initialValue in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Schedule in schema fpml-shared-4-4_xsd Drilldown into AmountSchedule in schema fpml-shared-4-4_xsdXSD Diagram of feeAmountSchedule in schema fpml-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="feeAmountSchedule" type="AmountSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The exercise fee amount schedule. The fees are expressed as currency amounts. The currency of the fee is assumed to be that of the notional schedule referenced.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue fpml:initialValue (1) (1)
step fpml:step 0 unbounded
currency fpml:currency (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
