Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxEuropeanTrigger
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:FxEuropeanTrigger
Containing Schema: fpml-fx-4-4.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
A European trigger occurs if the trigger criteria are met, but these are valid (and an observation is made) only at the maturity of the option.

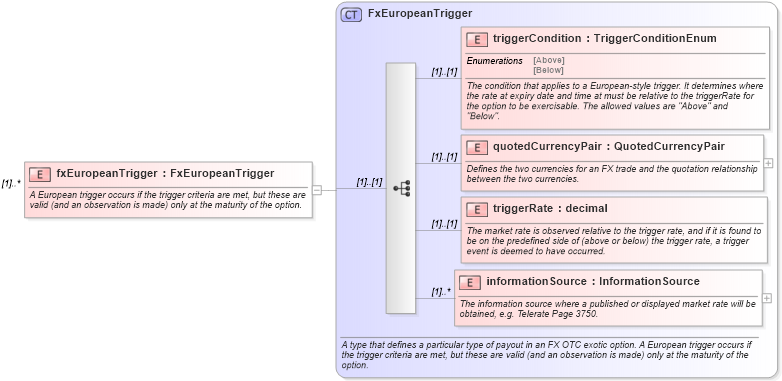

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-fx-4-4_xsd Drilldown into triggerRate in schema fpml-fx-4-4_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-4-4_xsd Drilldown into triggerCondition in schema fpml-fx-4-4_xsd Drilldown into FxEuropeanTrigger in schema fpml-fx-4-4_xsdXSD Diagram of fxEuropeanTrigger in schema fpml-fx-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxEuropeanTrigger" type="FxEuropeanTrigger" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A European trigger occurs if the trigger criteria are met, but these are valid (and an observation is made) only at the maturity of the option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
triggerCondition fpml:triggerCondition (1) (1)
quotedCurrencyPair fpml:quotedCurrencyPair (1) (1)
triggerRate fpml:triggerRate (1) (1)
informationSource fpml:informationSource (1) unbounded
Collapse Derivation Tree:
