Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: informationSource
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:InformationSource
Containing Schema: fpml-asset-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The information source where a published or displayed market rate will be obtained, e.g. Telerate Page 3750.

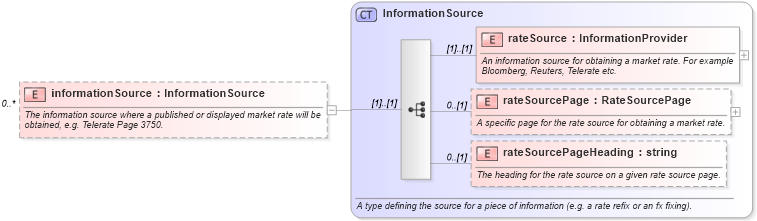

Collapse XSD Schema Diagram:
Drilldown into rateSourcePageHeading in schema fpml-shared-4-4_xsd Drilldown into rateSourcePage in schema fpml-shared-4-4_xsd Drilldown into rateSource in schema fpml-shared-4-4_xsd Drilldown into InformationSource in schema fpml-shared-4-4_xsdXSD Diagram of informationSource in schema fpml-asset-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="informationSource" type="InformationSource" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The information source where a published or displayed market rate will be obtained, e.g. Telerate Page 3750.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rateSource fpml:rateSource (1) (1)
rateSourcePage fpml:rateSourcePage 0 (1)
rateSourcePageHeading fpml:rateSourcePageHeading 0 (1)
Collapse Derivation Tree:
