Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: knownAmountSchedule
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:AmountSchedule
Containing Schema: fpml-ird-4-4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The known calculation period amount or a known amount schedule expressed as explicit known amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.

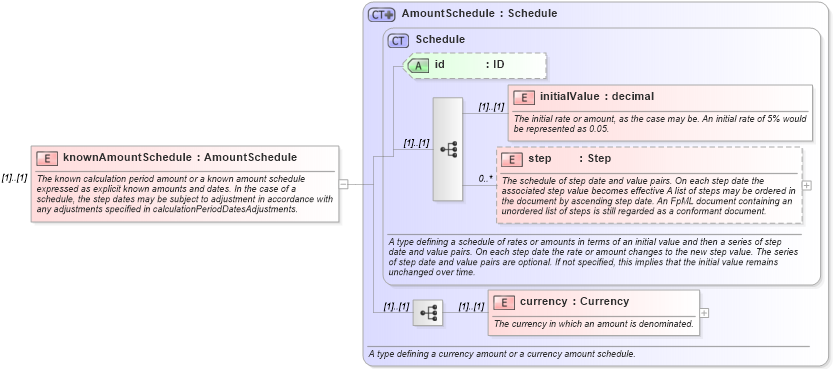

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-4-4_xsd Drilldown into step in schema fpml-shared-4-4_xsd Drilldown into initialValue in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Schedule in schema fpml-shared-4-4_xsd Drilldown into AmountSchedule in schema fpml-shared-4-4_xsdXSD Diagram of knownAmountSchedule in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="knownAmountSchedule" type="AmountSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The known calculation period amount or a known amount schedule expressed as explicit known amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue fpml:initialValue (1) (1)
step fpml:step 0 unbounded
currency fpml:currency (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
