Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: NettedSwapBase
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Product
Containing Schema: fpml-eq-shared-4-4.xsd
Abstract True
Documentation:
An abstract base class for all swap types which have a single netted leg, such as Variance Swaps, and Correlation Swaps.

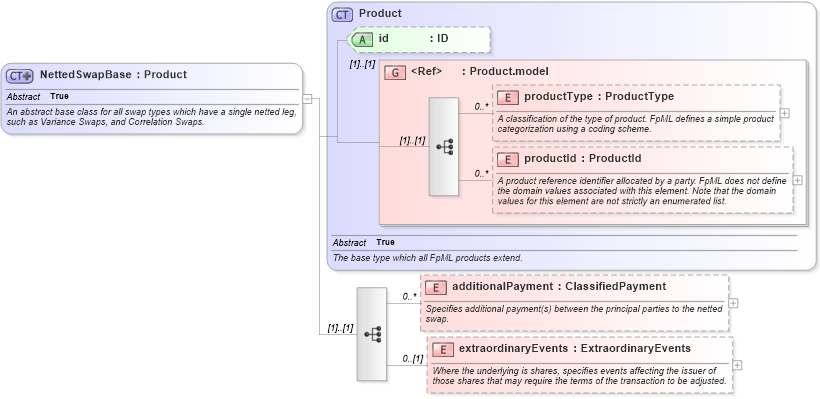

Collapse XSD Schema Diagram:
Drilldown into extraordinaryEvents in schema fpml-eq-shared-4-4_xsd Drilldown into additionalPayment in schema fpml-eq-shared-4-4_xsd Drilldown into productId in schema fpml-shared-4-4_xsd Drilldown into productType in schema fpml-shared-4-4_xsd Drilldown into Product.model in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Product in schema fpml-shared-4-4_xsdXSD Diagram of NettedSwapBase in schema fpml-eq-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="NettedSwapBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An abstract base class for all swap types which have a single netted leg, such as Variance Swaps, and Correlation Swaps.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:element name="additionalPayment" type="ClassifiedPayment" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Specifies additional payment(s) between the principal parties to the netted swap.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType fpml:productType 0 unbounded
productId fpml:productId 0 unbounded
additionalPayment fpml:additionalPayment 0 unbounded
extraordinaryEvents fpml:extraordinaryEvents 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:CorrelationSwap, fpml:VarianceSwap
