Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: nonDeliverableSettlement
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:NonDeliverableSettlement
Containing Schema: fpml-ird-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The specification of the non-deliverable settlement provision.

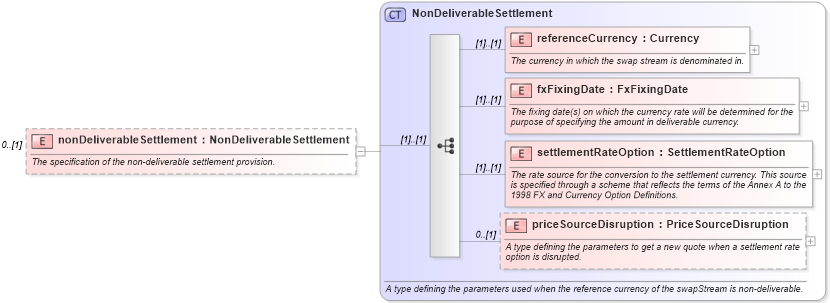

Collapse XSD Schema Diagram:
Drilldown into priceSourceDisruption in schema fpml-ird-4-4_xsd Drilldown into settlementRateOption in schema fpml-ird-4-4_xsd Drilldown into fxFixingDate in schema fpml-ird-4-4_xsd Drilldown into referenceCurrency in schema fpml-ird-4-4_xsd Drilldown into NonDeliverableSettlement in schema fpml-ird-4-4_xsdXSD Diagram of nonDeliverableSettlement in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="nonDeliverableSettlement" type="NonDeliverableSettlement" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The specification of the non-deliverable settlement provision.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
referenceCurrency fpml:referenceCurrency (1) (1)
fxFixingDate fpml:fxFixingDate (1) (1)
settlementRateOption fpml:settlementRateOption (1) (1)
priceSourceDisruption fpml:priceSourceDisruption 0 (1)
Collapse Derivation Tree:
