Definition Type: ComplexType
Name: Notional
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-ird-4-4.xsd
Abstract
Documentation:
An type defining the notional amount or notional amount schedule associated with a swap stream. The notional schedule will be captured explicitly, specifying the dates that the notional changes and the outstanding notional amount that applies from that date. A parametric representation of the rules defining the notional step schedule can optionally be included.

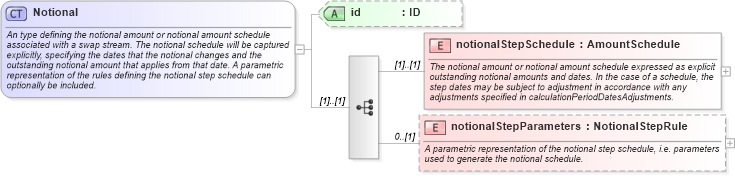

Collapse XSD Schema Diagram:
Drilldown into notionalStepParameters in schema fpml-ird-4-4_xsd Drilldown into notionalStepSchedule in schema fpml-ird-4-4_xsd Drilldown into id in schema fpml-ird-4-4_xsdXSD Diagram of Notional in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Notional">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An type defining the notional amount or notional amount schedule associated with a swap stream. The notional schedule will be captured explicitly, specifying the dates that the notional changes and the outstanding notional amount that applies from that date. A parametric representation of the rules defining the notional step schedule can optionally be included.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="notionalStepSchedule" type="AmountSchedule">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The notional amount or notional amount schedule expressed as explicit outstanding notional amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="notionalStepParameters" type="NotionalStepRule" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A parametric representation of the notional step schedule, i.e. parameters used to generate the notional schedule.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalStepSchedule fpml:notionalStepSchedule (1) (1)
notionalStepParameters fpml:notionalStepParameters 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:notionalSchedule
