Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notional
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:CashflowNotional
Containing Schema: fpml-reconciliation-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Identifies the notional in effect for this calculation period.

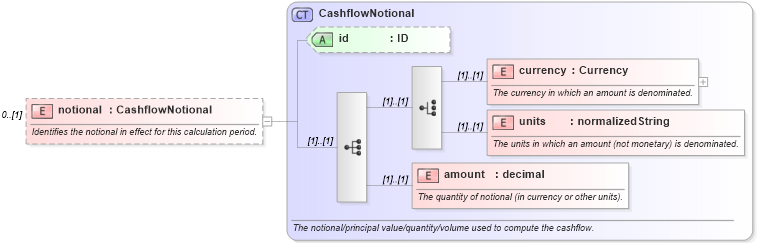

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-reconciliation-4-4_xsd Drilldown into units in schema fpml-reconciliation-4-4_xsd Drilldown into currency in schema fpml-reconciliation-4-4_xsd Drilldown into id in schema fpml-reconciliation-4-4_xsd Drilldown into CashflowNotional in schema fpml-reconciliation-4-4_xsdXSD Diagram of notional in schema fpml-reconciliation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notional" type="CashflowNotional" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identifies the notional in effect for this calculation period.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency fpml:currency (1) (1)
units fpml:units (1) (1)
amount fpml:amount (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
