Definition Type: ComplexType
Name: ObservedRates
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-fx-4-4.xsd
Abstract
Documentation:
A type that describes prior rate observations within average rate options. Periodically, an average rate option agreement will be struck whereby some rates have already been observed in the past but will become part of computation of the average rate of the option. This structure provides for these previously observed rates to be included in the description of the trade.

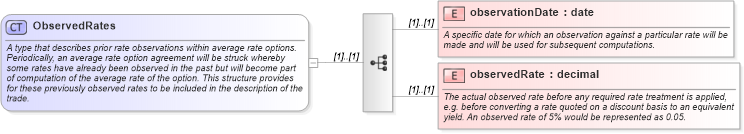

Collapse XSD Schema Diagram:
Drilldown into observedRate in schema fpml-fx-4-4_xsd Drilldown into observationDate in schema fpml-fx-4-4_xsdXSD Diagram of ObservedRates in schema fpml-fx-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ObservedRates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that describes prior rate observations within average rate options. Periodically, an average rate option agreement will be struck whereby some rates have already been observed in the past but will become part of computation of the average rate of the option. This structure provides for these previously observed rates to be included in the description of the trade.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="observationDate" type="xsd:date">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A specific date for which an observation against a particular rate will be made and will be used for subsequent computations.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="observedRate" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The actual observed rate before any required rate treatment is applied, e.g. before converting a rate quoted on a discount basis to an equivalent yield. An observed rate of 5% would be represented as 0.05.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationDate fpml:observationDate (1) (1)
observedRate fpml:observedRate (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:observedRates
