Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: OptionFeature.model
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-option-shared-4-4.xsd
Documentation:
A model group containing Option Base Feature Elements

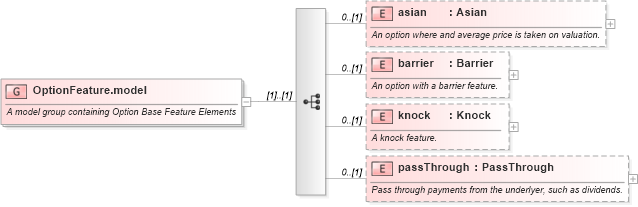

Collapse XSD Schema Diagram:
Drilldown into passThrough in schema fpml-option-shared-4-4_xsd Drilldown into knock in schema fpml-option-shared-4-4_xsd Drilldown into barrier in schema fpml-option-shared-4-4_xsd Drilldown into asian in schema fpml-option-shared-4-4_xsdXSD Diagram of OptionFeature.model in schema fpml-option-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="OptionFeature.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A model group containing Option Base Feature Elements</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="asian" type="Asian" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An option where and average price is taken on valuation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="barrier" type="Barrier" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An option with a barrier feature.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="knock" type="Knock" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A knock feature.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="passThrough" type="PassThrough" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Pass through payments from the underlyer, such as dividends.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
asian fpml:asian 0 (1)
barrier fpml:barrier 0 (1)
knock fpml:knock 0 (1)
passThrough fpml:passThrough 0 (1)
