Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: physicalSettlementPeriod
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:PhysicalSettlementPeriod
Containing Schema: fpml-cd-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The number of business days used in the determination of the physical settlement date. The physical settlement date is this number of business days after all applicable conditions to settlement are satisfied. If a number of business days is not specified fallback provisions apply for determining the number of business days. If Section 8.5/8.6 of the 1999/2003 ISDA Definitions are to apply the businessDaysNotSpecified element should be included. If a specified number of business days are to apply these should be specified in the businessDays element. If Section 8.5/8.6 of the 1999/2003 ISDA Definitions are to apply but capped at a maximum number of business days then the maximum number should be specified in the maximumBusinessDays element. ISDA 2003 Term: Physical Settlement Period

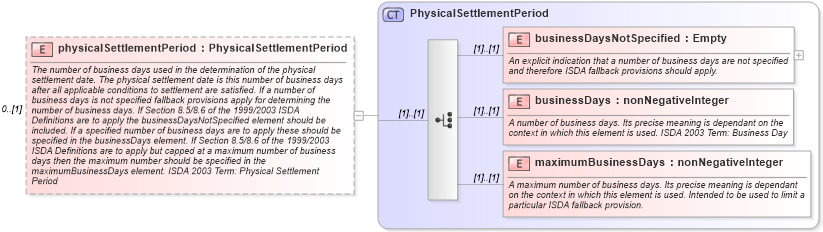

Collapse XSD Schema Diagram:
Drilldown into maximumBusinessDays in schema fpml-cd-4-4_xsd Drilldown into businessDays in schema fpml-cd-4-4_xsd Drilldown into businessDaysNotSpecified in schema fpml-cd-4-4_xsd Drilldown into PhysicalSettlementPeriod in schema fpml-cd-4-4_xsdXSD Diagram of physicalSettlementPeriod in schema fpml-cd-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="physicalSettlementPeriod" type="PhysicalSettlementPeriod" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The number of business days used in the determination of the physical settlement date. The physical settlement date is this number of business days after all applicable conditions to settlement are satisfied. If a number of business days is not specified fallback provisions apply for determining the number of business days. If Section 8.5/8.6 of the 1999/2003 ISDA Definitions are to apply the businessDaysNotSpecified element should be included. If a specified number of business days are to apply these should be specified in the businessDays element. If Section 8.5/8.6 of the 1999/2003 ISDA Definitions are to apply but capped at a maximum number of business days then the maximum number should be specified in the maximumBusinessDays element. ISDA 2003 Term: Physical Settlement Period</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
businessDaysNotSpecified fpml:businessDaysNotSpecified (1) (1)
businessDays fpml:businessDays (1) (1)
maximumBusinessDays fpml:maximumBusinessDays (1) (1)
Collapse Derivation Tree:
