Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PositionMatchResult
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-reconciliation-4-4.xsd
Abstract

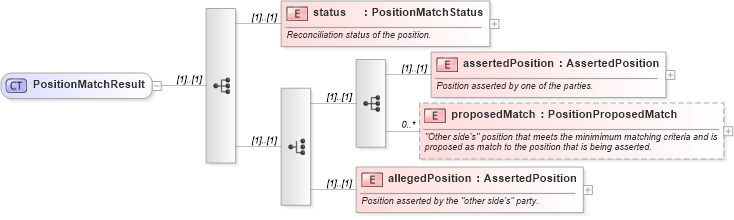

Collapse XSD Schema Diagram:
Drilldown into allegedPosition in schema fpml-reconciliation-4-4_xsd Drilldown into proposedMatch in schema fpml-reconciliation-4-4_xsd Drilldown into assertedPosition in schema fpml-reconciliation-4-4_xsd Drilldown into status in schema fpml-reconciliation-4-4_xsdXSD Diagram of PositionMatchResult in schema fpml-reconciliation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PositionMatchResult">
    <xsd:sequence>
        <xsd:element name="status" type="PositionMatchStatus">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reconciliation status of the position.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice>
            <xsd:sequence>
                <xsd:element name="assertedPosition" type="AssertedPosition">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Position asserted by one of the parties.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="proposedMatch" type="PositionProposedMatch" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">"Other side's" position that meets the minimimum matching criteria and is proposed as match to the position that is being asserted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:element name="allegedPosition" type="AssertedPosition">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Position asserted by the "other side's" party.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
status fpml:status (1) (1)
assertedPosition fpml:assertedPosition (1) (1)
proposedMatch fpml:proposedMatch 0 unbounded
allegedPosition fpml:allegedPosition (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:positionMatchResult
