Definition Type: Element
Name: quotableFxSingleLeg
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:QuotableFxLeg
Containing Schema: fpml-pretrade-4-4.xsd
Abstract

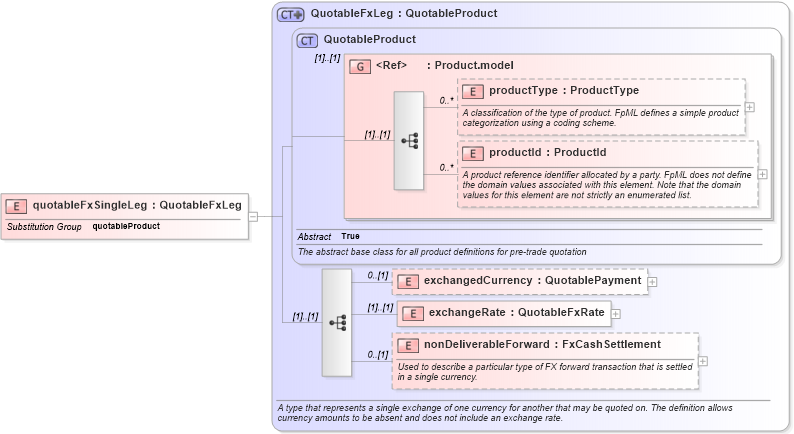

Collapse XSD Schema Diagram:
Drilldown into nonDeliverableForward in schema fpml-pretrade-4-4_xsd Drilldown into exchangeRate in schema fpml-pretrade-4-4_xsd Drilldown into exchangedCurrency in schema fpml-pretrade-4-4_xsd Drilldown into productId in schema fpml-shared-4-4_xsd Drilldown into productType in schema fpml-shared-4-4_xsd Drilldown into Product.model in schema fpml-shared-4-4_xsd Drilldown into QuotableProduct in schema fpml-pretrade-4-4_xsd Drilldown into QuotableFxLeg in schema fpml-pretrade-4-4_xsdXSD Diagram of quotableFxSingleLeg in schema fpml-pretrade-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="quotableFxSingleLeg" type="QuotableFxLeg" substitutionGroup="quotableProduct" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType fpml:productType 0 unbounded
productId fpml:productId 0 unbounded
exchangedCurrency fpml:exchangedCurrency 0 (1)
exchangeRate fpml:exchangeRate (1) (1)
nonDeliverableForward fpml:nonDeliverableForward 0 (1)
Collapse Derivation Tree:
Collapse References:
fpml:quotableProduct
