Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RatePeriod
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-loan-4-4.xsd
Abstract
Documentation:
Rate information per rate period

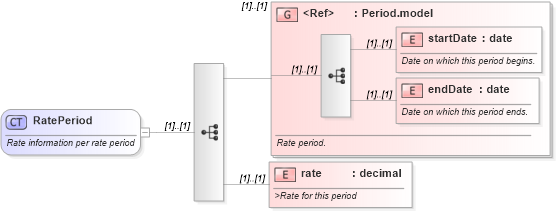

Collapse XSD Schema Diagram:
Drilldown into rate in schema fpml-loan-4-4_xsd Drilldown into endDate in schema fpml-loan-4-4_xsd Drilldown into startDate in schema fpml-loan-4-4_xsd Drilldown into Period.model in schema fpml-loan-4-4_xsdXSD Diagram of RatePeriod in schema fpml-loan-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RatePeriod">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Rate information per rate period</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="Period.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Rate period.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
        <xsd:element name="rate" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">&gt;Rate for this period</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
startDate fpml:startDate (1) (1)
endDate fpml:endDate (1) (1)
rate fpml:rate (1) (1)
<xs:group> fpml:Period.model (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:feeRatePeriod
