Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: reportingRoles
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:ReportingRoles
Containing Schema: fpml-reconciliation-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Information about the roles of the parties with respect to reporting the positions.

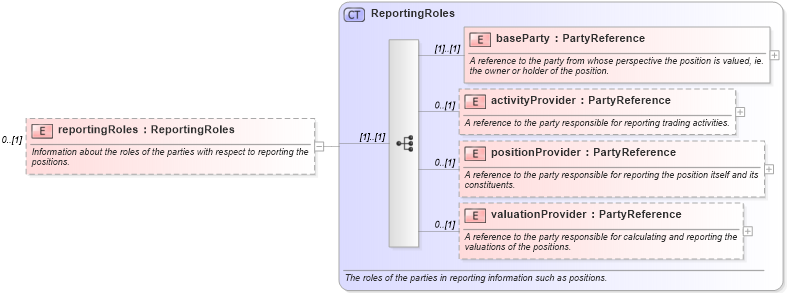

Collapse XSD Schema Diagram:
Drilldown into valuationProvider in schema fpml-valuation-4-4_xsd Drilldown into positionProvider in schema fpml-valuation-4-4_xsd Drilldown into activityProvider in schema fpml-valuation-4-4_xsd Drilldown into baseParty in schema fpml-valuation-4-4_xsd Drilldown into ReportingRoles in schema fpml-valuation-4-4_xsdXSD Diagram of reportingRoles in schema fpml-reconciliation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="reportingRoles" type="ReportingRoles" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Information about the roles of the parties with respect to reporting the positions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
baseParty fpml:baseParty (1) (1)
activityProvider fpml:activityProvider 0 (1)
positionProvider fpml:positionProvider 0 (1)
valuationProvider fpml:valuationProvider 0 (1)
Collapse Derivation Tree:
