Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestAllocation
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:RequestMessage
Containing Schema: fpml-allocation-4-4.xsd
Abstract
Documentation:
Message used in order to initiate the allocation process.

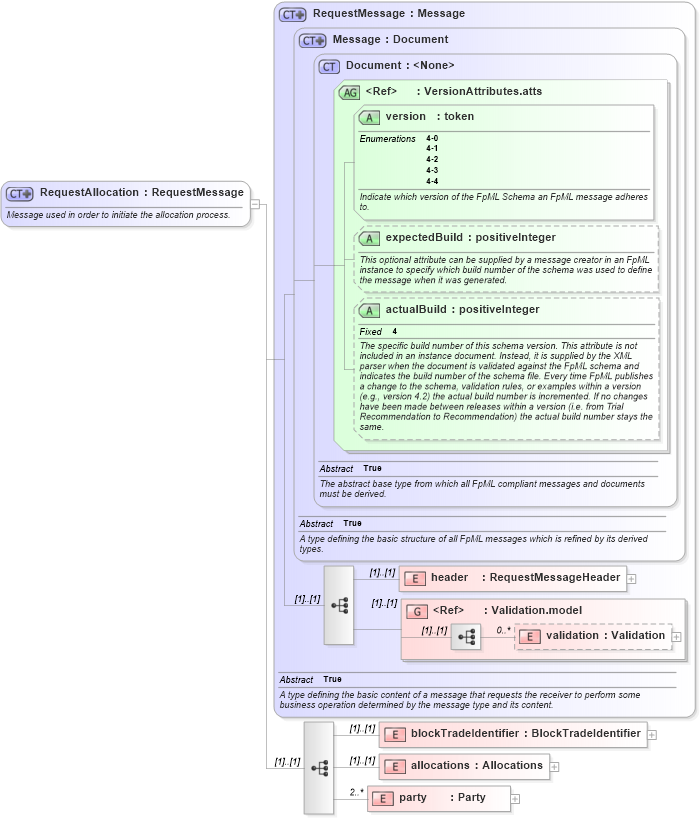

Collapse XSD Schema Diagram:
Drilldown into party in schema fpml-allocation-4-4_xsd Drilldown into allocations in schema fpml-allocation-4-4_xsd Drilldown into blockTradeIdentifier in schema fpml-allocation-4-4_xsd Drilldown into validation in schema fpml-doc-4-4_xsd Drilldown into Validation.model in schema fpml-doc-4-4_xsd Drilldown into header in schema fpml-msg-4-4_xsd Drilldown into actualBuild in schema fpml-doc-4-4_xsd Drilldown into expectedBuild in schema fpml-doc-4-4_xsd Drilldown into version in schema fpml-doc-4-4_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-4-4_xsd Drilldown into Document in schema fpml-doc-4-4_xsd Drilldown into Message in schema fpml-msg-4-4_xsd Drilldown into RequestMessage in schema fpml-msg-4-4_xsdXSD Diagram of RequestAllocation in schema fpml-allocation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestAllocation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Message used in order to initiate the allocation process.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="RequestMessage">
            <xsd:sequence>
                <xsd:element name="blockTradeIdentifier" type="BlockTradeIdentifier" />
                <xsd:element name="allocations" type="Allocations" />
                <xsd:element name="party" type="Party" minOccurs="2" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header fpml:header (1) (1)
validation fpml:validation 0 unbounded
blockTradeIdentifier fpml:blockTradeIdentifier (1) (1)
allocations fpml:allocations (1) (1)
party fpml:party 2 unbounded
<xs:group> fpml:Validation.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
version fpml:version Required
expectedBuild fpml:expectedBuild (Optional)
actualBuild fpml:actualBuild (Optional)
Collapse Derivation Tree:
