Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Resource
Namespace: http://www.fpml.org/2007/FpML-4-4
Containing Schema: fpml-credit-event-notification-4-4.xsd
Abstract
Documentation:
Describes the resource that contains the media representation of a business event (i.e used for stating the Publicly Available Information). For example, can describe a file or a URL that represents the event.

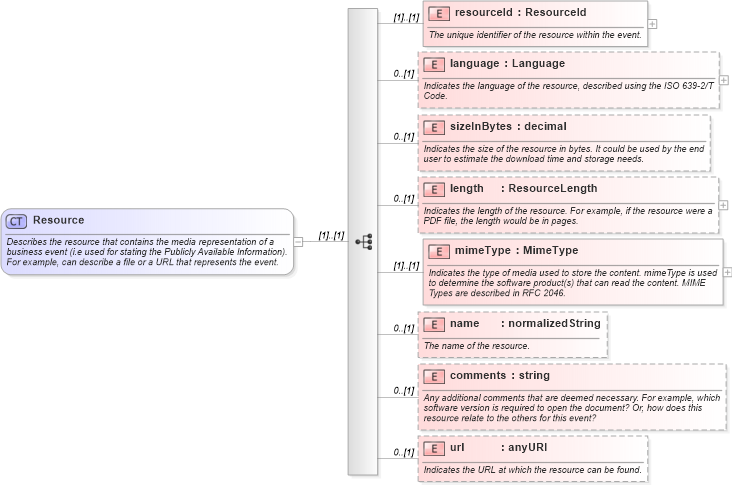

Collapse XSD Schema Diagram:
Drilldown into url in schema fpml-credit-event-notification-4-4_xsd Drilldown into comments in schema fpml-credit-event-notification-4-4_xsd Drilldown into name in schema fpml-credit-event-notification-4-4_xsd Drilldown into mimeType in schema fpml-credit-event-notification-4-4_xsd Drilldown into length in schema fpml-credit-event-notification-4-4_xsd Drilldown into sizeInBytes in schema fpml-credit-event-notification-4-4_xsd Drilldown into language in schema fpml-credit-event-notification-4-4_xsd Drilldown into resourceId in schema fpml-credit-event-notification-4-4_xsdXSD Diagram of Resource in schema fpml-credit-event-notification-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Resource">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes the resource that contains the media representation of a business event (i.e used for stating the Publicly Available Information). For example, can describe a file or a URL that represents the event.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="resourceId" type="ResourceId">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The unique identifier of the resource within the event.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="language" type="Language" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the language of the resource, described using the ISO 639-2/T Code.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sizeInBytes" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the size of the resource in bytes. It could be used by the end user to estimate the download time and storage needs.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="length" type="ResourceLength" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the length of the resource. For example, if the resource were a PDF file, the length would be in pages.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="mimeType" type="MimeType">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the type of media used to store the content. mimeType is used to determine the software product(s) that can read the content. MIME Types are described in RFC 2046.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="name" type="xsd:normalizedString" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The name of the resource.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="comments" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Any additional comments that are deemed necessary. For example, which software version is required to open the document? Or, how does this resource relate to the others for this event?</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="url" type="xsd:anyURI" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the URL at which the resource can be found.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
resourceId fpml:resourceId (1) (1)
language fpml:language 0 (1)
sizeInBytes fpml:sizeInBytes 0 (1)
length fpml:length 0 (1)
mimeType fpml:mimeType (1) (1)
name fpml:name 0 (1)
comments fpml:comments 0 (1)
url fpml:url 0 (1)
Collapse Derivation Tree:
Collapse References:
fpml:publiclyAvailableInformation
