Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementInformation
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:SettlementInformation
Containing Schema: fpml-shared-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The information required to settle a currency payment that results from a trade.

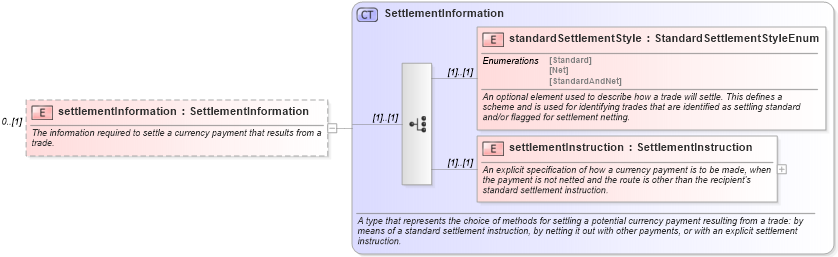

Collapse XSD Schema Diagram:
Drilldown into settlementInstruction in schema fpml-shared-4-4_xsd Drilldown into standardSettlementStyle in schema fpml-shared-4-4_xsd Drilldown into SettlementInformation in schema fpml-shared-4-4_xsdXSD Diagram of settlementInformation in schema fpml-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementInformation" type="SettlementInformation" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The information required to settle a currency payment that results from a trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
standardSettlementStyle fpml:standardSettlementStyle (1) (1)
settlementInstruction fpml:settlementInstruction (1) (1)
Collapse Derivation Tree:
