Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: swap
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Swap
Containing Schema: fpml-ird-4-4.xsd
Abstract
Documentation:
A swap product definition.

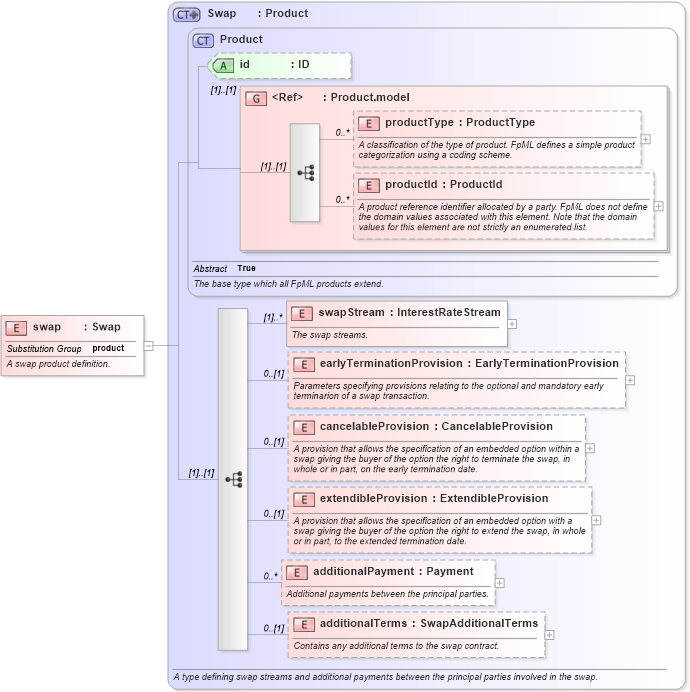

Collapse XSD Schema Diagram:
Drilldown into additionalTerms in schema fpml-ird-4-4_xsd Drilldown into additionalPayment in schema fpml-ird-4-4_xsd Drilldown into extendibleProvision in schema fpml-ird-4-4_xsd Drilldown into cancelableProvision in schema fpml-ird-4-4_xsd Drilldown into earlyTerminationProvision in schema fpml-ird-4-4_xsd Drilldown into swapStream in schema fpml-ird-4-4_xsd Drilldown into productId in schema fpml-shared-4-4_xsd Drilldown into productType in schema fpml-shared-4-4_xsd Drilldown into Product.model in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Product in schema fpml-shared-4-4_xsd Drilldown into Swap in schema fpml-ird-4-4_xsdXSD Diagram of swap in schema fpml-ird-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="swap" type="Swap" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A swap product definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType fpml:productType 0 unbounded
productId fpml:productId 0 unbounded
swapStream fpml:swapStream (1) unbounded
earlyTerminationProvision fpml:earlyTerminationProvision 0 (1)
cancelableProvision fpml:cancelableProvision 0 (1)
extendibleProvision fpml:extendibleProvision 0 (1)
additionalPayment fpml:additionalPayment 0 unbounded
additionalTerms fpml:additionalTerms 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:product
