Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: underlyerReference
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:AssetReference
Containing Schema: fpml-option-shared-4-4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Reference to the underlyer whose payments are being passed through.

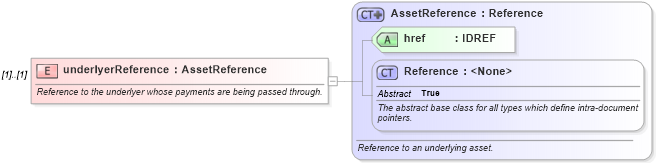

Collapse XSD Schema Diagram:
Drilldown into Reference in schema fpml-shared-4-4_xsd Drilldown into href in schema fpml-asset-4-4_xsd Drilldown into AssetReference in schema fpml-asset-4-4_xsdXSD Diagram of underlyerReference in schema fpml-option-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlyerReference" type="AssetReference">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Reference to the underlyer whose payments are being passed through.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
href fpml:href Required
Collapse Derivation Tree:
