Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: YieldCurve
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:PricingStructure
Containing Schema: fpml-mktenv-4-4.xsd
Abstract
Documentation:
A generic yield curve object, which can be valued in a variety of ways.

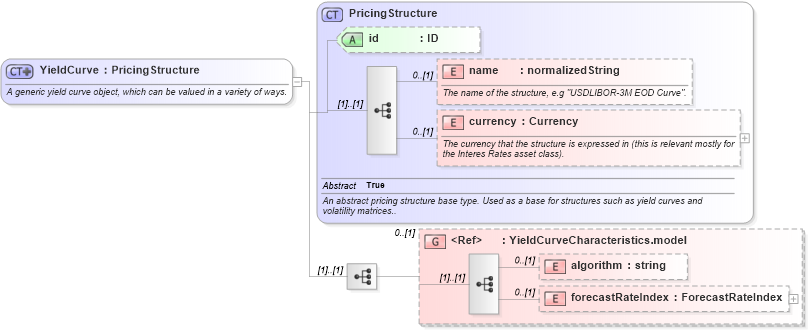

Collapse XSD Schema Diagram:
Drilldown into forecastRateIndex in schema fpml-mktenv-4-4_xsd Drilldown into algorithm in schema fpml-mktenv-4-4_xsd Drilldown into YieldCurveCharacteristics.model in schema fpml-mktenv-4-4_xsd Drilldown into currency in schema fpml-shared-4-4_xsd Drilldown into name in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into PricingStructure in schema fpml-shared-4-4_xsdXSD Diagram of YieldCurve in schema fpml-mktenv-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="YieldCurve">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A generic yield curve object, which can be valued in a variety of ways.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PricingStructure">
            <xsd:sequence>
                <xsd:group ref="YieldCurveCharacteristics.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name fpml:name 0 (1)
currency fpml:currency 0 (1)
algorithm fpml:algorithm 0 (1)
forecastRateIndex fpml:forecastRateIndex 0 (1)
<xs:group> fpml:YieldCurveCharacteristics.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:yieldCurve
