Definition Type: Group
Name: CommodityCalculationPeriods.model
Namespace: http://www.fpml.org/2008/FpML-4-5
Containing Schema: fpml-com-4-5.xsd
Documentation:
The different options for specifying the Calculation Periods.

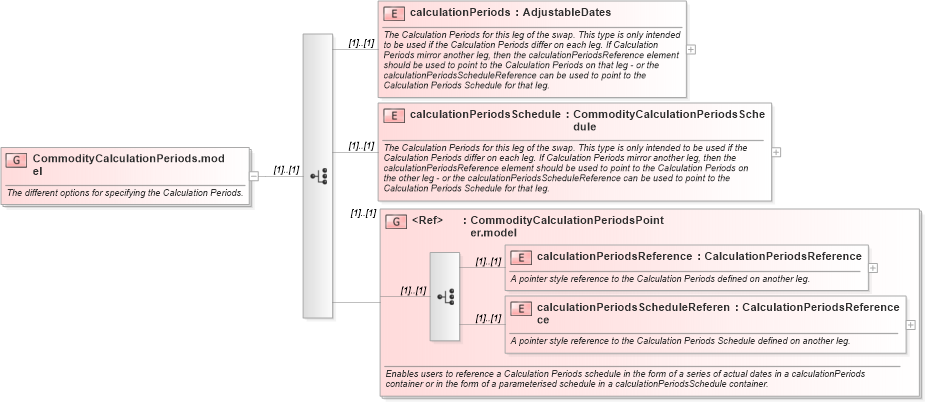

Collapse XSD Schema Diagram:
Drilldown into calculationPeriodsScheduleReference in schema fpml-com-4-5_xsd Drilldown into calculationPeriodsReference in schema fpml-com-4-5_xsd Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-4-5_xsd Drilldown into calculationPeriodsSchedule in schema fpml-com-4-5_xsd Drilldown into calculationPeriods in schema fpml-com-4-5_xsdXSD Diagram of CommodityCalculationPeriods.model in schema fpml-com-4-5_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="CommodityCalculationPeriods.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The different options for specifying the Calculation Periods.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:element name="calculationPeriods" type="AdjustableDates">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The Calculation Periods for this leg of the swap. This type is only intended to be used if the Calculation Periods differ on each leg. If Calculation Periods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on that leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The Calculation Periods for this leg of the swap. This type is only intended to be used if the Calculation Periods differ on each leg. If Calculation Periods mirror another leg, then the calculationPeriodsReference element should be used to point to the Calculation Periods on the other leg - or the calculationPeriodsScheduleReference can be used to point to the Calculation Periods Schedule for that leg.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="CommodityCalculationPeriodsPointer.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Enables users to reference a Calculation Periods schedule in the form of a series of actual dates in a calculationPeriods container or in the form of a parameterised schedule in a calculationPeriodsSchedule container.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
calculationPeriods fpml:calculationPeriods (1) (1)
calculationPeriodsSchedule fpml:calculationPeriodsSchedule (1) (1)
calculationPeriodsReference fpml:calculationPeriodsReference (1) (1)
calculationPeriodsScheduleReference fpml:calculationPeriodsScheduleReference (1) (1)
<xs:group> fpml:CommodityCalculationPeriodsPointer.model (1) (1)
