Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notionalQuantitySchedule
Namespace: http://www.fpml.org/2008/FpML-4-5
Type: fpml:CommodityNotionalSchedule
Containing Schema: fpml-com-4-5.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.

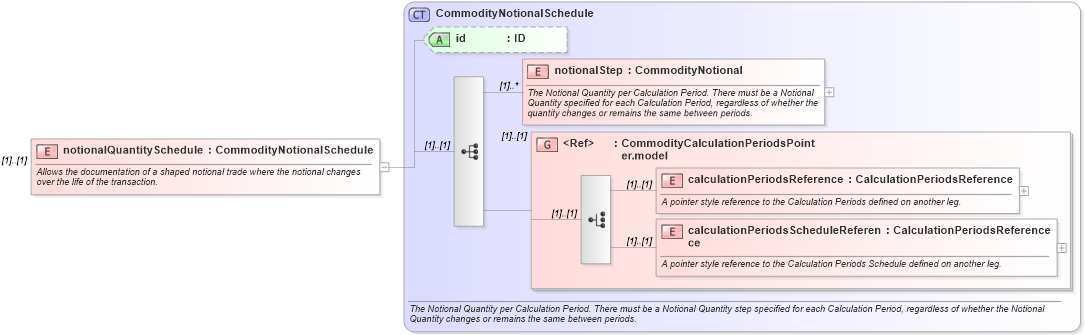

Collapse XSD Schema Diagram:
Drilldown into calculationPeriodsScheduleReference in schema fpml-com-4-5_xsd Drilldown into calculationPeriodsReference in schema fpml-com-4-5_xsd Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-4-5_xsd Drilldown into notionalStep in schema fpml-com-4-5_xsd Drilldown into id in schema fpml-com-4-5_xsd Drilldown into CommodityNotionalSchedule in schema fpml-com-4-5_xsdXSD Diagram of notionalQuantitySchedule in schema fpml-com-4-5_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notionalQuantitySchedule" type="CommodityNotionalSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalStep fpml:notionalStep (1) unbounded
calculationPeriodsReference fpml:calculationPeriodsReference (1) (1)
calculationPeriodsScheduleReference fpml:calculationPeriodsScheduleReference (1) (1)
<xs:group> fpml:CommodityCalculationPeriodsPointer.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
