Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PaymentBase
Namespace: http://www.fpml.org/2008/FpML-4-5
Containing Schema: fpml-shared-4-5.xsd
Abstract True
Documentation:
An abstract base class for payment types.

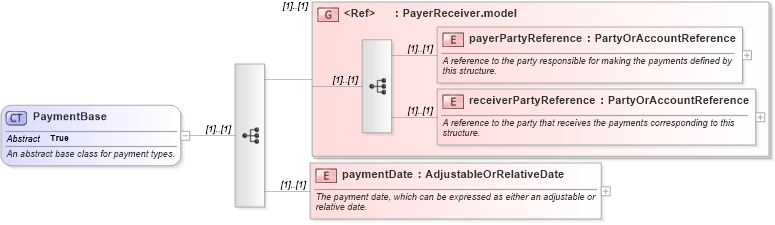

Collapse XSD Schema Diagram:
Drilldown into paymentDate in schema fpml-shared-4-5_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-5_xsd Drilldown into payerPartyReference in schema fpml-shared-4-5_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-5_xsdXSD Diagram of PaymentBase in schema fpml-shared-4-5_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PaymentBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An abstract base class for payment types.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PayerReceiver.model" />
        <xsd:element name="paymentDate" type="AdjustableOrRelativeDate">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The payment date, which can be expressed as either an adjustable or relative date.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference fpml:payerPartyReference (1) (1)
receiverPartyReference fpml:receiverPartyReference (1) (1)
paymentDate fpml:paymentDate (1) (1)
<xs:group> fpml:PayerReceiver.model (1) (1)
Collapse Derivation Tree:
Collapse References:
fpml:NonNegativePayment, fpml:PositivePayment
