Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Commodity
Namespace: http://www.fpml.org/2009/FpML-4-6
Type: fpml:IdentifiedAsset
Containing Schema: fpml-asset-4-6.xsd
Abstract
Documentation:
A type describing a commodity underlying asset.

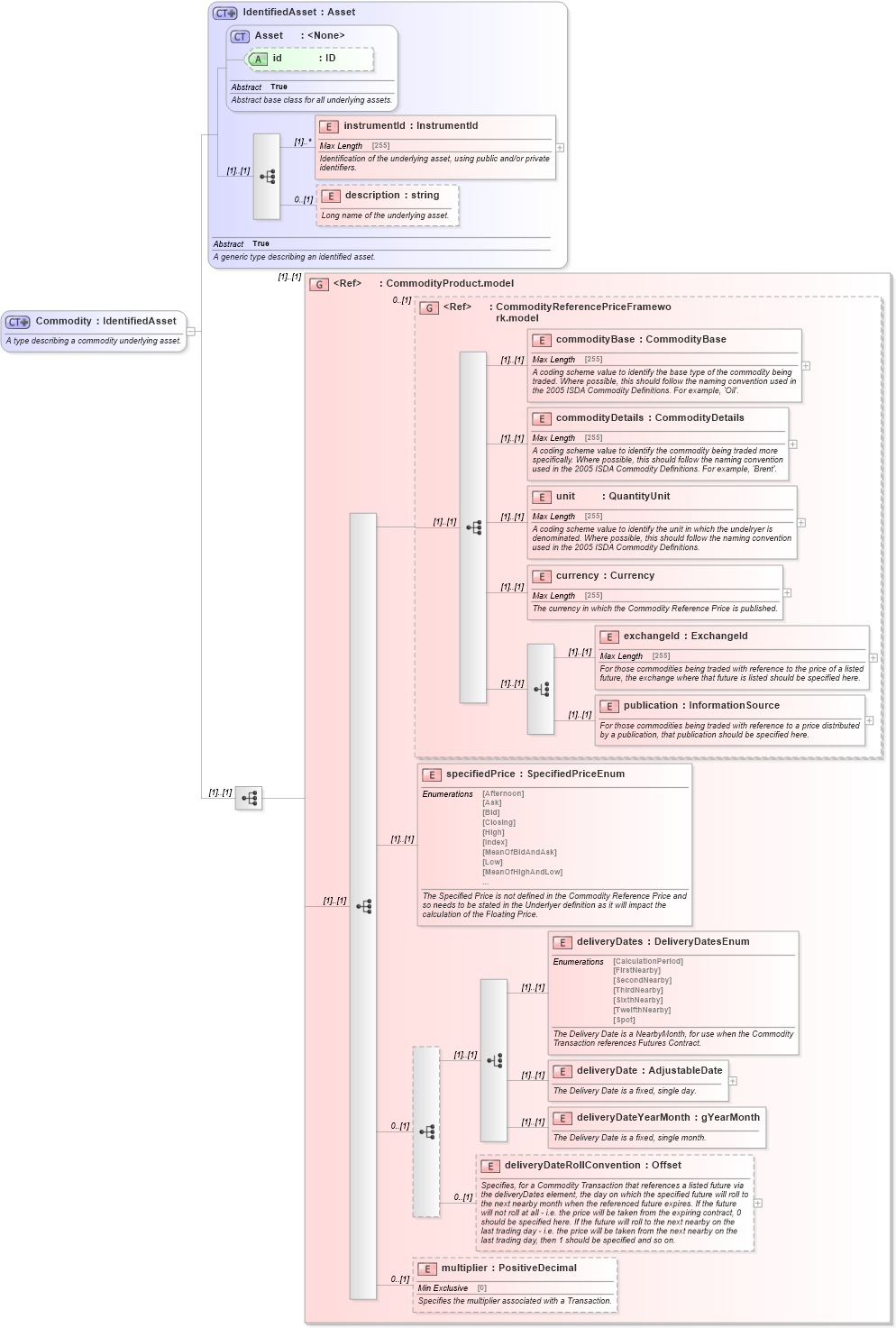

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-asset-4-6_xsd Drilldown into deliveryDateRollConvention in schema fpml-asset-4-6_xsd Drilldown into deliveryDateYearMonth in schema fpml-asset-4-6_xsd Drilldown into deliveryDate in schema fpml-asset-4-6_xsd Drilldown into deliveryDates in schema fpml-asset-4-6_xsd Drilldown into specifiedPrice in schema fpml-asset-4-6_xsd Drilldown into publication in schema fpml-asset-4-6_xsd Drilldown into exchangeId in schema fpml-asset-4-6_xsd Drilldown into currency in schema fpml-asset-4-6_xsd Drilldown into unit in schema fpml-asset-4-6_xsd Drilldown into commodityDetails in schema fpml-asset-4-6_xsd Drilldown into commodityBase in schema fpml-asset-4-6_xsd Drilldown into CommodityReferencePriceFramework.model in schema fpml-asset-4-6_xsd Drilldown into CommodityProduct.model in schema fpml-asset-4-6_xsd Drilldown into description in schema fpml-asset-4-6_xsd Drilldown into instrumentId in schema fpml-asset-4-6_xsd Drilldown into id in schema fpml-asset-4-6_xsd Drilldown into Asset in schema fpml-asset-4-6_xsd Drilldown into IdentifiedAsset in schema fpml-asset-4-6_xsdXSD Diagram of Commodity in schema fpml-asset-4-6_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Commodity">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type describing a commodity underlying asset.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="IdentifiedAsset">
            <xsd:sequence>
                <xsd:group ref="CommodityProduct.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId fpml:instrumentId (1) unbounded
description fpml:description 0 (1)
commodityBase fpml:commodityBase (1) (1)
commodityDetails fpml:commodityDetails (1) (1)
unit fpml:unit (1) (1)
currency fpml:currency (1) (1)
exchangeId fpml:exchangeId (1) (1)
publication fpml:publication (1) (1)
specifiedPrice fpml:specifiedPrice (1) (1)
deliveryDates fpml:deliveryDates (1) (1)
deliveryDate fpml:deliveryDate (1) (1)
deliveryDateYearMonth fpml:deliveryDateYearMonth (1) (1)
deliveryDateRollConvention fpml:deliveryDateRollConvention 0 (1)
multiplier fpml:multiplier 0 (1)
<xs:group> fpml:CommodityProduct.model (1) (1)
<xs:group> fpml:CommodityReferencePriceFramework.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:commodity, fpml:commodity, fpml:commodity
