Definition Type: ComplexType
Name: CommodityPhysicalQuantity
Namespace: http://www.fpml.org/2009/FpML-4-6
Type: fpml:CommodityPhysicalQuantityBase
Containing Schema: fpml-com-4-6.xsd
Abstract
Documentation:
A type defining the physical quantity of the commodity to be delivered.

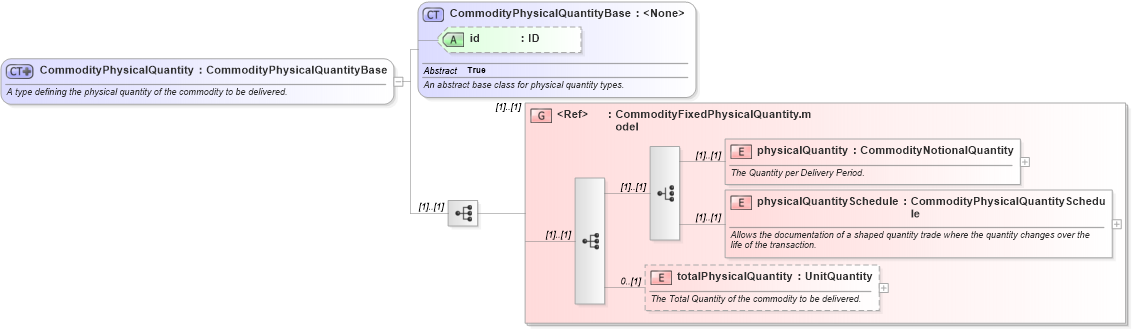

Collapse XSD Schema Diagram:
Drilldown into totalPhysicalQuantity in schema fpml-com-4-6_xsd Drilldown into physicalQuantitySchedule in schema fpml-com-4-6_xsd Drilldown into physicalQuantity in schema fpml-com-4-6_xsd Drilldown into CommodityFixedPhysicalQuantity.model in schema fpml-com-4-6_xsd Drilldown into id in schema fpml-com-4-6_xsd Drilldown into CommodityPhysicalQuantityBase in schema fpml-com-4-6_xsdXSD Diagram of CommodityPhysicalQuantity in schema fpml-com-4-6_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommodityPhysicalQuantity">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the physical quantity of the commodity to be delivered.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="CommodityPhysicalQuantityBase">
            <xsd:sequence>
                <xsd:group ref="CommodityFixedPhysicalQuantity.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
physicalQuantity fpml:physicalQuantity (1) (1)
physicalQuantitySchedule fpml:physicalQuantitySchedule (1) (1)
totalPhysicalQuantity fpml:totalPhysicalQuantity 0 (1)
<xs:group> fpml:CommodityFixedPhysicalQuantity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:deliveryQuantity, fpml:deliveryQuantity
