Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: electricityPhysicalLeg
Namespace: http://www.fpml.org/2009/FpML-4-6
Type: fpml:ElectricityPhysicalLeg
Containing Schema: fpml-com-4-6.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Physically settled electricity leg.

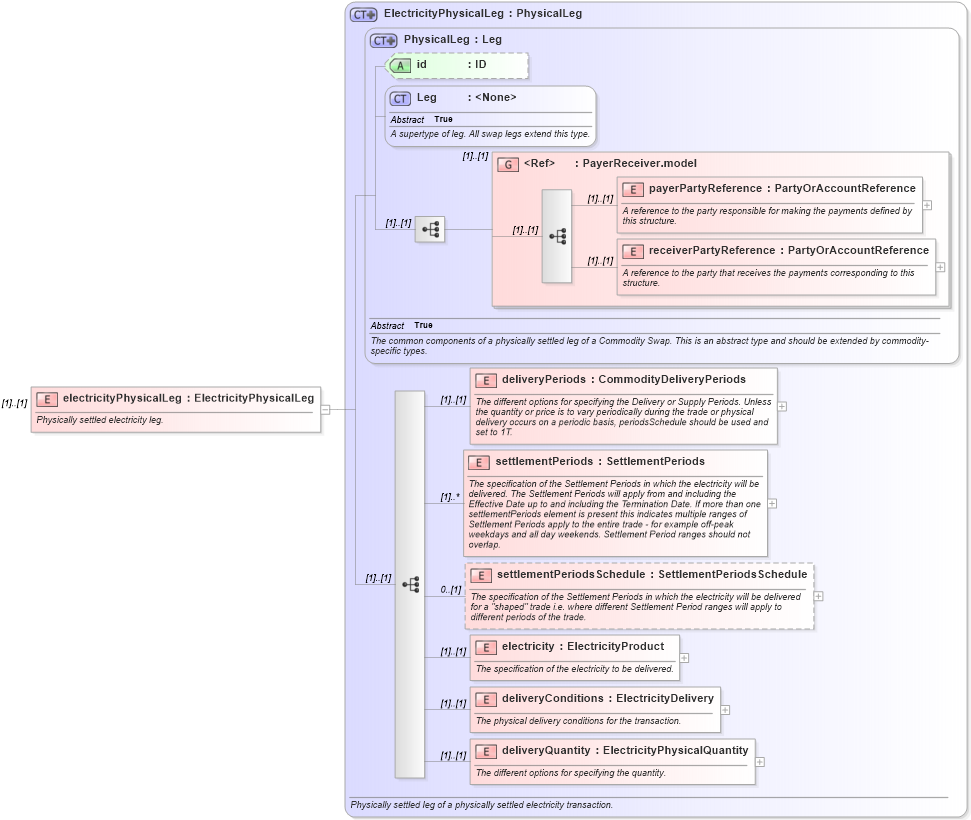

Collapse XSD Schema Diagram:
Drilldown into deliveryQuantity in schema fpml-com-4-6_xsd Drilldown into deliveryConditions in schema fpml-com-4-6_xsd Drilldown into electricity in schema fpml-com-4-6_xsd Drilldown into settlementPeriodsSchedule in schema fpml-com-4-6_xsd Drilldown into settlementPeriods in schema fpml-com-4-6_xsd Drilldown into deliveryPeriods in schema fpml-com-4-6_xsd Drilldown into receiverPartyReference in schema fpml-shared-4-6_xsd Drilldown into payerPartyReference in schema fpml-shared-4-6_xsd Drilldown into PayerReceiver.model in schema fpml-shared-4-6_xsd Drilldown into Leg in schema fpml-shared-4-6_xsd Drilldown into id in schema fpml-com-4-6_xsd Drilldown into PhysicalLeg in schema fpml-com-4-6_xsd Drilldown into ElectricityPhysicalLeg in schema fpml-com-4-6_xsdXSD Diagram of electricityPhysicalLeg in schema fpml-com-4-6_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="electricityPhysicalLeg" type="ElectricityPhysicalLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Physically settled electricity leg.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference fpml:payerPartyReference (1) (1)
receiverPartyReference fpml:receiverPartyReference (1) (1)
deliveryPeriods fpml:deliveryPeriods (1) (1)
settlementPeriods fpml:settlementPeriods (1) unbounded
settlementPeriodsSchedule fpml:settlementPeriodsSchedule 0 (1)
electricity fpml:electricity (1) (1)
deliveryConditions fpml:deliveryConditions (1) (1)
deliveryQuantity fpml:deliveryQuantity (1) (1)
<xs:group> fpml:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
