Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriods
Namespace: http://www.fpml.org/2009/FpML-4-6
Type: fpml:SettlementPeriods
Containing Schema: fpml-com-4-6.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

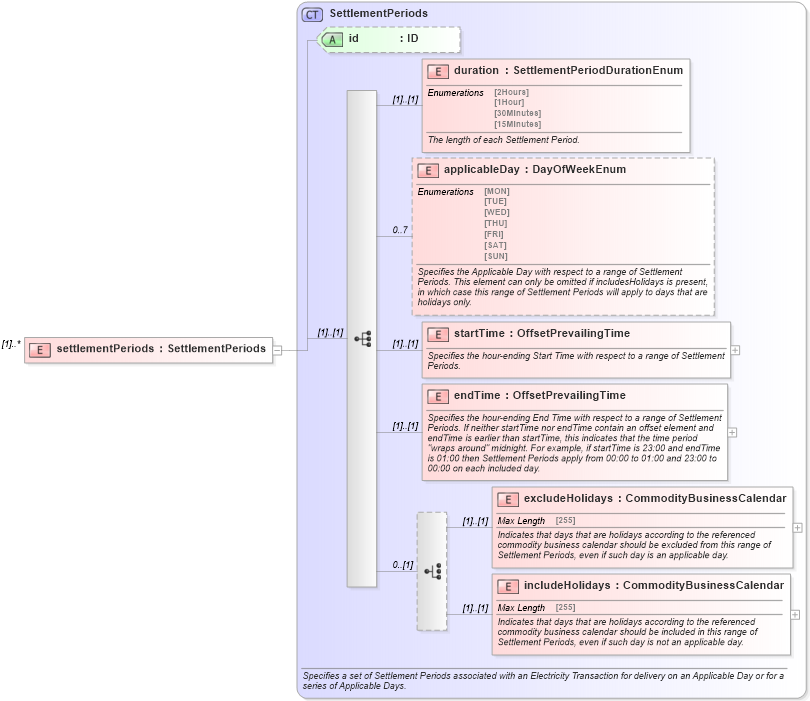

Collapse XSD Schema Diagram:
Drilldown into includeHolidays in schema fpml-com-4-6_xsd Drilldown into excludeHolidays in schema fpml-com-4-6_xsd Drilldown into endTime in schema fpml-com-4-6_xsd Drilldown into startTime in schema fpml-com-4-6_xsd Drilldown into applicableDay in schema fpml-com-4-6_xsd Drilldown into duration in schema fpml-com-4-6_xsd Drilldown into id in schema fpml-com-4-6_xsd Drilldown into SettlementPeriods in schema fpml-com-4-6_xsdXSD Diagram of settlementPeriods in schema fpml-com-4-6_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriods" type="SettlementPeriods" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
duration fpml:duration (1) (1)
applicableDay fpml:applicableDay 0 7
startTime fpml:startTime (1) (1)
endTime fpml:endTime (1) (1)
excludeHolidays fpml:excludeHolidays (1) (1)
includeHolidays fpml:includeHolidays (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
