Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriodsNotionalQuantitySchedule
Namespace: http://www.fpml.org/2009/FpML-4-6
Type: fpml:CommoditySettlementPeriodsNotionalQuantitySchedule
Containing Schema: fpml-com-4-6.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
For an electricity transaction, the Notional Quantity schedule for a one or more groups of Settlement Periods to which the Notional Quantity is based. If the schedule differs for different groups of Settlement Periods, this element should be repeated.

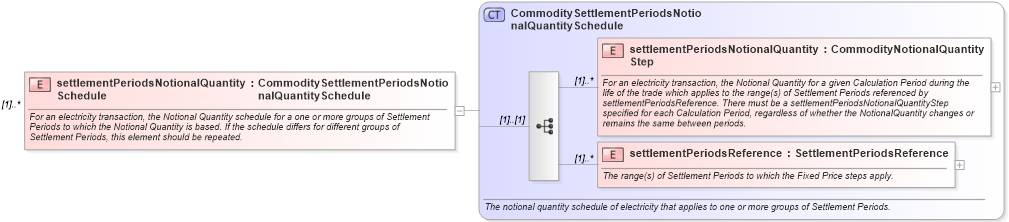

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodsReference in schema fpml-com-4-6_xsd Drilldown into settlementPeriodsNotionalQuantityStep in schema fpml-com-4-6_xsd Drilldown into CommoditySettlementPeriodsNotionalQuantitySchedule in schema fpml-com-4-6_xsdXSD Diagram of settlementPeriodsNotionalQuantitySchedule in schema fpml-com-4-6_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsNotionalQuantitySchedule" type="CommoditySettlementPeriodsNotionalQuantitySchedule" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>For an electricity transaction, the Notional Quantity schedule for a one or more groups of Settlement Periods to which the Notional Quantity is based. If the schedule differs for different groups of Settlement Periods, this element should be repeated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementPeriodsNotionalQuantityStep fpml:settlementPeriodsNotionalQuantityStep (1) unbounded
settlementPeriodsReference fpml:settlementPeriodsReference (1) unbounded
Collapse Derivation Tree:
