Documentation for GraphML
Definition Type: Element
Name: hyperedge
Namespace: http://graphml.graphdrawing.org/xmlns
Type: g:hyperedge.type
Containing Schema: graphml-structure.xsd
Abstract
Documentation:
Description: While edges describe relations between two nodes, a hyperedge describes a relation between an arbitrary number of nodes. Occurence: <graph>.

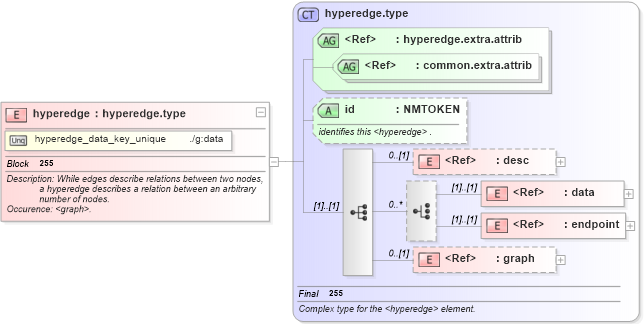

Collapse XSD Schema Diagram:
Drilldown into graph in schema graphml-structure_xsd Drilldown into endpoint in schema graphml-structure_xsd Drilldown into data in schema graphml-structure_xsd Drilldown into desc in schema graphml-structure_xsd Drilldown into id in schema graphml-structure_xsd Drilldown into common.extra.attrib in schema graphml-structure_xsd Drilldown into hyperedge.extra.attrib in schema graphml-structure_xsd Drilldown into hyperedge.type in schema graphml-structure_xsdXSD Diagram of hyperedge in schema graphml-structure_xsd (GraphML)
Collapse XSD Schema Code:
<xs:element name="hyperedge" type="hyperedge.type" block="#all">
    <xs:annotation>
        <xs:documentation source="http://graphml.graphdrawing.org/" xml:lang="en">
           Description: While edges describe relations between two nodes,
                        a hyperedge describes a relation between an arbitrary
                        number of nodes.
           Occurence: &lt;graph&gt;.
      </xs:documentation>
    </xs:annotation>
    <xs:unique name="hyperedge_data_key_unique">
        <xs:annotation>
            <xs:documentation source="http://graphml.graphdrawing.org/" xml:lang="en">
        Ensures: uniqueness of the key attributes of &lt;data&gt; children
                 of this &lt;hyperedge&gt; element.
      </xs:documentation>
        </xs:annotation>
        <xs:selector xpath="./g:data" />
        <xs:field xpath="@key" />
    </xs:unique>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
desc g:desc 0 (1)
data g:data (1) (1)
endpoint g:endpoint (1) (1)
graph g:graph 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id g:id (Optional)
Collapse Derivation Tree:
