Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: NK1.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract
Collapse XSD Schema Diagram:

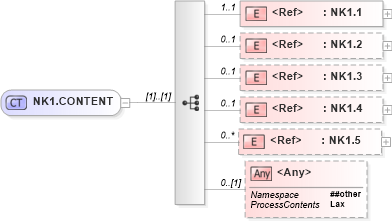

Drilldown into NK1.5 in schema fields_xsd Drilldown into NK1.4 in schema fields_xsd Drilldown into NK1.3 in schema fields_xsd Drilldown into NK1.2 in schema fields_xsd Drilldown into NK1.1 in schema fields_xsdXSD Diagram of NK1.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="NK1.CONTENT">
    <xsd:sequence>
        <xsd:element ref="NK1.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NK1.2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NK1.3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NK1.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NK1.5" minOccurs="0" maxOccurs="unbounded" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NK1.1 nsA:NK1.1 1 1
NK1.2 nsA:NK1.2 0 1
NK1.3 nsA:NK1.3 0 1
NK1.4 nsA:NK1.4 0 1
NK1.5 nsA:NK1.5 0 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:NK1
