Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: ADT_A07.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: ADT_A07.xsd
Abstract

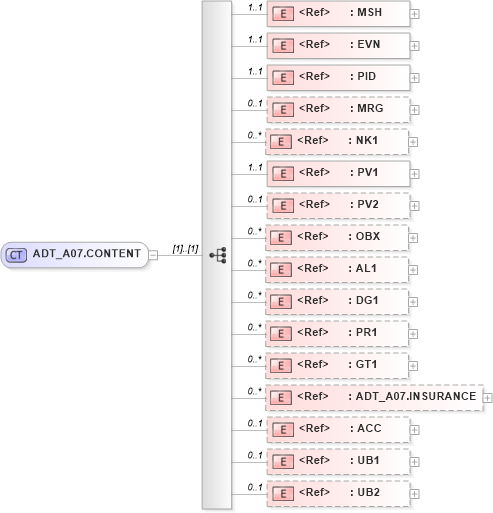

Collapse XSD Schema Diagram:
Drilldown into UB2 in schema segments_xsd Drilldown into UB1 in schema segments_xsd Drilldown into ACC in schema segments_xsd Drilldown into ADT_A07.INSURANCE in schema adt_a07_xsd Drilldown into GT1 in schema segments_xsd Drilldown into PR1 in schema segments_xsd Drilldown into DG1 in schema segments_xsd Drilldown into AL1 in schema segments_xsd Drilldown into OBX in schema segments_xsd Drilldown into PV2 in schema segments_xsd Drilldown into PV1 in schema segments_xsd Drilldown into NK1 in schema segments_xsd Drilldown into MRG in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into EVN in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of ADT_A07.CONTENT in schema adt_a07_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="ADT_A07.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="EVN" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MRG" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NK1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PV1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PV2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AL1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DG1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PR1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="GT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ADT_A07.INSURANCE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ACC" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="UB1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="UB2" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
EVN nsA:EVN 1 1
PID nsA:PID 1 1
MRG nsA:MRG 0 1
NK1 nsA:NK1 0 unbounded
PV1 nsA:PV1 1 1
PV2 nsA:PV2 0 1
OBX nsA:OBX 0 unbounded
AL1 nsA:AL1 0 unbounded
DG1 nsA:DG1 0 unbounded
PR1 nsA:PR1 0 unbounded
GT1 nsA:GT1 0 unbounded
ADT_A07.INSURANCE nsA:ADT_A07.INSURANCE 0 unbounded
ACC nsA:ACC 0 1
UB1 nsA:UB1 0 1
UB2 nsA:UB2 0 1
Collapse Derivation Tree:
Collapse References:
nsA:ADT_A07
