Documentation for Health Level Seven (HL7)
Definition Type: Element
Name: ADT_A21
Namespace: urn:hl7-org:v2xml
Type: nsA:ADT_A21.CONTENT
Containing Schema: ADT_A21.xsd
Abstract

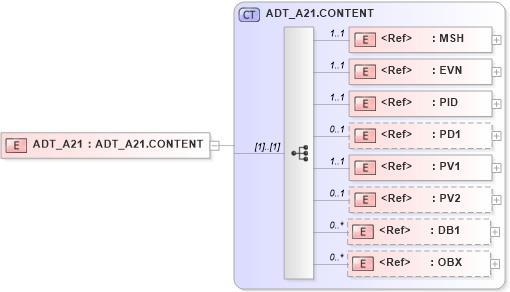

Collapse XSD Schema Diagram:
Drilldown into OBX in schema segments_xsd Drilldown into DB1 in schema segments_xsd Drilldown into PV2 in schema segments_xsd Drilldown into PV1 in schema segments_xsd Drilldown into PD1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into EVN in schema segments_xsd Drilldown into MSH in schema segments_xsd Drilldown into ADT_A21.CONTENT in schema adt_a21_xsdXSD Diagram of ADT_A21 in schema adt_a21_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:element name="ADT_A21" type="ADT_A21.CONTENT">
    <xsd:annotation>
        <xsd:appinfo source="urn:com.sun:encoder">
            <top xmlns="urn:com.sun:encoder">true</top>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
EVN nsA:EVN 1 1
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
PV1 nsA:PV1 1 1
PV2 nsA:PV2 0 1
DB1 nsA:DB1 0 unbounded
OBX nsA:OBX 0 unbounded
Collapse Derivation Tree:
