Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: LAN.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

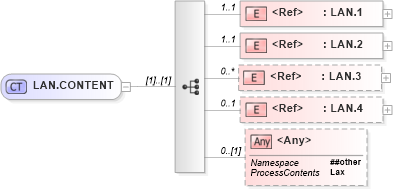

Collapse XSD Schema Diagram:
Drilldown into LAN.4 in schema fields_xsd Drilldown into LAN.3 in schema fields_xsd Drilldown into LAN.2 in schema fields_xsd Drilldown into LAN.1 in schema fields_xsdXSD Diagram of LAN.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="LAN.CONTENT">
    <xsd:sequence>
        <xsd:element ref="LAN.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="LAN.2" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="LAN.3" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LAN.4" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LAN.1 nsA:LAN.1 1 1
LAN.2 nsA:LAN.2 1 1
LAN.3 nsA:LAN.3 0 unbounded
LAN.4 nsA:LAN.4 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:LAN
