Documentation for Health Level Seven (HL7)
Definition Type: Element
Name: MESSAGEBATCH
Namespace: urn:hl7-org:v2xml
Containing Schema: batch.xsd
Abstract
Collapse XSD Schema Diagram:

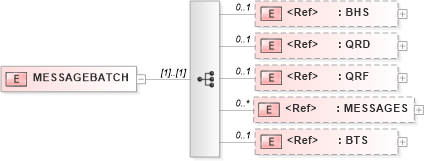

Drilldown into BTS in schema segments_xsd Drilldown into MESSAGES in schema batch_xsd Drilldown into QRF in schema segments_xsd Drilldown into QRD in schema segments_xsd Drilldown into BHS in schema segments_xsdXSD Diagram of MESSAGEBATCH in schema batch_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:element name="MESSAGEBATCH">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="BHS" minOccurs="0" maxOccurs="1" />
            <xsd:element ref="QRD" minOccurs="0" maxOccurs="1" />
            <xsd:element ref="QRF" minOccurs="0" maxOccurs="1" />
            <xsd:element ref="MESSAGES" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="BTS" minOccurs="0" maxOccurs="1" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BHS nsA:BHS 0 1
QRD nsA:QRD 0 1
QRF nsA:QRF 0 1
MESSAGES nsA:MESSAGES 0 unbounded
BTS nsA:BTS 0 1
