Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: MFK_M01.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: MFK_M01.xsd
Abstract

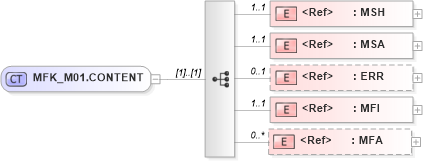

Collapse XSD Schema Diagram:
Drilldown into MFA in schema segments_xsd Drilldown into MFI in schema segments_xsd Drilldown into ERR in schema segments_xsd Drilldown into MSA in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of MFK_M01.CONTENT in schema mfk_m01_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="MFK_M01.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSA" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ERR" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MFI" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MFA" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
MSA nsA:MSA 1 1
ERR nsA:ERR 0 1
MFI nsA:MFI 1 1
MFA nsA:MFA 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:MFK_M01
